Remove/Install Side Window - AR67.30-P-0005LC

Model 217

Shown on left side of vehicle

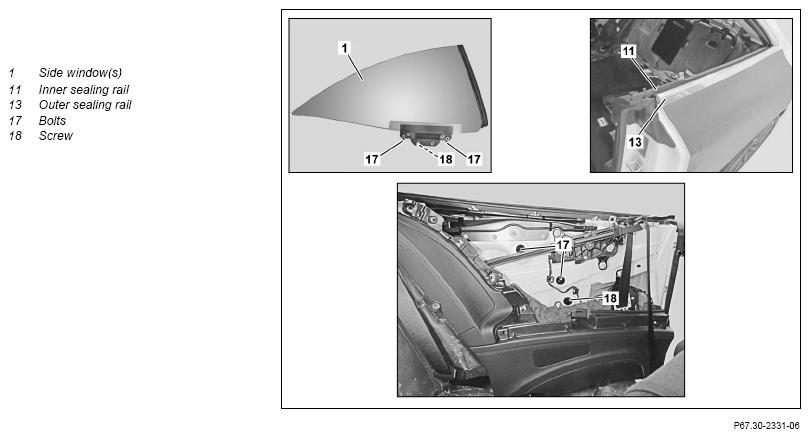

Fig 1: Side Window Component Location - Model 217 (Shown On Left Side Of Vehicle)

G15300735

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove outer seal (13) on right and left
2	Remove inner seal (11) on right and left
3	Remove upper side paneling in rear		AR68.30-P-4780LC
4	Completely lift side window (1)
5	Remove stop plugs above bolts (17, 18)
6	Remove bolts (17)	Use strongly magnetized screwdriver.
7	Lower side window (1) until bolt (18) is accessible
8	Remove bolt (18)	Use strongly magnetized screwdriver.
9	Remove side window (1)
	Install
10	Insert side window (1)
11	Position screw (18)	Position bolt (18), however, do not yet tighten.
12	Raise side window (1)
13	Fit screw/bolts (17)	Position bolts (17), however, do not yet tighten.
14	Completely lower side window (1)
15	Install inner sealing rail (11) on right and left
16	Remove outer seal (13) on right and left
17	Adjust side window (1)	Model 217	AR67.30-P-4201LC
