Remove/Install Triangular Window On A-Pillar - AR67.30-S-2600E

Model 447, 448

MODIFICATION NOTES

01.12.2016 "Repair materials for 1-component adhesive" replaced, work procedure and contents updated Operation steps 1 to 3 AR67.10-S-1000-07S
01.12.2016 "Repair materials for 1-component adhesive" replaced Operation steps 2, 3 AR67.30-S-2600-02S
01.12.2016 "Repair materials for 1-component adhesive" replaced Operation step 6
01.12.2016 Work procedure and contents updated Operation steps 1 to 8
G16488109Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
Notice  Notes on carrying out repair work in the vehicle interior   AH68.00-D-0001-01KOS
Notice  Notes on removal/installation of windows   AH67.10-P-1000-02RT
REMOVING Remove
1 Remove paneling on A-pillar   AR68.30-S-4050E
2 Lower a side window in front door and open front door
WARNING Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass when cutting out bonded windows Wear protective gloves and safety glasses. AS67.00-Z-0004-01A

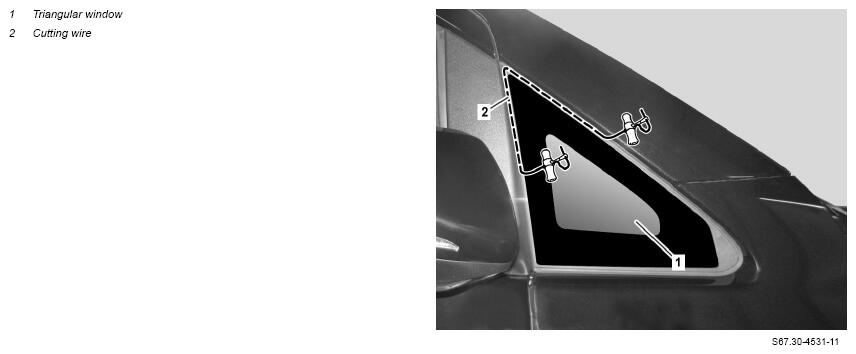

3 Cut out triangular window (1) with cutting wire (2) NOTES Protect working area against damage from cutting wire (2) with suitable material. Damage may occur otherwise.
IMPORTANT Do not reuse triangular window (1) after cutting out.
Have second person help.
Punch pipe probe for cutting wire (2) through adhesive seam at easily accessible point.
IMPORTANTCommercially available devices/tools  Cutting wire with handles		 AR67.30-S-2600-01S
CLEAN Clean
4 Remove glue residues from body flange IMPORTANT Cut residual adhesive down to approx. 1 mm and remove loose adhesive material.
5 Vacuum off glass splinters and contamination IMPORTANTCommercially available devices/tools  Wet and dry vacuum cleaner
INSTALLING Install
6 Apply primer to body flange on primed surface
Notice  General notes about painting the body flange in the glazing area NOTES Do not apply primer on top of residual adhesive. Otherwise, the adhesive effect will be impaired. AH98.00-P-9408-06A
    Glazing repair kit 500662 01/03/05/07/09/11 *BR00.45-Z-1031-02A
    Repair kit for installing windshields, 1-component adhesive *BR00.45-Z-1180-02A
7 Prepare adhesive cartridge IMPORTANTCommercially available devices/tools  Electric and pneumatic cartridge gun AR67.10-S-1000-07S
    Repair kit for installing windshields, 1-component adhesive *BR00.45-Z-1180-02A
    Glazing repair kit 500662 01/03/05/07/09/11 *BR00.45-Z-1031-02A
    SPECIAL TOOL Adapter Fig 1
8 Glue in triangular side window (1)   AR67.30-S-2600-02S
    Glazing repair kit 500662 01/03/05/07/09/11 *BR00.45-Z-1031-02A
    Repair kit for installing windshields, 1-component adhesive *BR00.45-Z-1180-02A
9 Install paneling on A-pillar   AR68.30-S-4050E
CLEAN Clean
10 Clean triangular side window (1) and vehicle interior IMPORTANT Clean triangular side window (1) only after end of curing time.
The drive-away time for the 2-component repair kit is 1 h.
Fig 1: Identifying Adapter (000 589 86 63 00)
G09977658Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1031-02A Glazing repair kit 500662 01/03/05/07/09/11 A 973 670 00 93
BR00.45-Z-1180-02A Repair kit for installing windshields, 1-component adhesive A 000 989 49 05
