Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Remove/install | |||
| 1 | Remove left catalytic converter | AR49.10-P-5502MMV | |

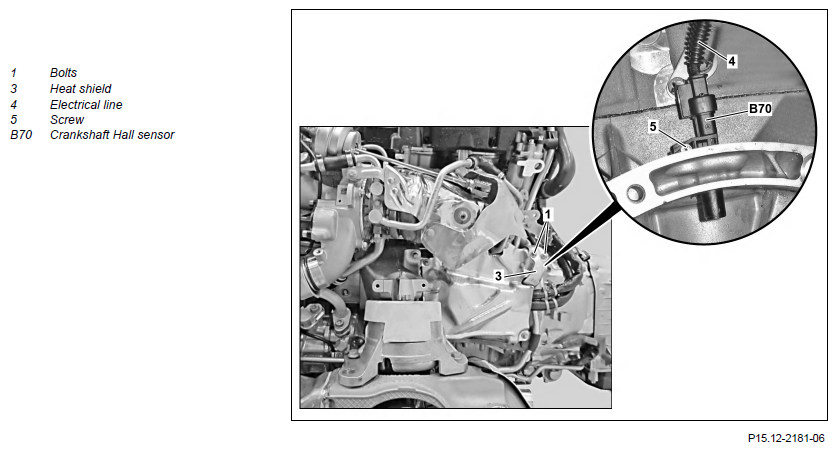

| 2 | Remove screw/bolts (1) and heat shield (3) for crankshaft Hall sensor (B70) | ||
| 3 | Disconnect electrical line (4) on crankshaft Hall sensor (B70) | ||
| 4 | Remove screw/bolt (5) and crankshaft Hall sensor (B70) upwards | *BA15.10-P-1001-03E | |
| 5 | Install in the reverse order | ||
| 6 |
Read out fault memory using the diagnostic system and clear if necessary | AD00.00-P-2000-04B | |
| 7 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check exhaust system for leaktightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1001-03E | Bolt, crankshaft Hall sensor to crankcase | Nm | 8 |
