Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Chrysler Voyager and 2020 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

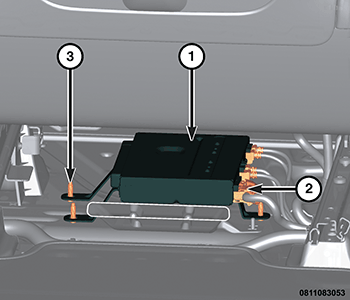

GC0177567Courtesy of CHRYSLER GROUP, LLC
  1. Position the Video Routing Module (VRM) (1) into the vehicle.
  2. Install and tighten the three VRM to body nut (3) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the VRM electrical connectors (2).

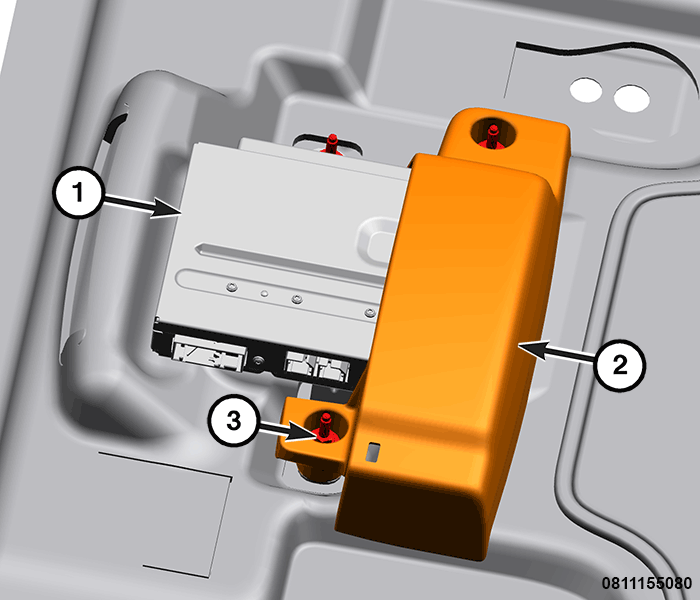

    GC0188605Courtesy of CHRYSLER GROUP, LLC
  4. Install the VRM cover (2) with the two mounting nuts (3) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  6. Reset the passenger front seat.
  7. If the VRM has been replaced, the remotes will have to be programmed. To program the remotes:
    • Reset the remote control by pressing play/pause, down, and the screen button simultaneously for about 5 seconds until the backlight flashes.
