Removal And Installation: Rear: Removal

WARNING: This page is about a different car, the 2020 Chrysler Voyager and 2020 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

Illustration shown with instrument panel removed from view for clarity.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the right rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .

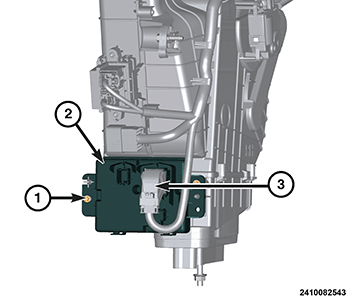

    GC0177624Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Heating, Ventilation and Air Conditioning, Rear (HVACR) module wire harness connector (3).
  4. Remove the two HVACR module to housing screws (1).
  5. Remove the HVACR module (2).
