Removal And Installation - Module: Installation

WARNING: This page is about a different car, the 2020 Chrysler Voyager and 2020 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

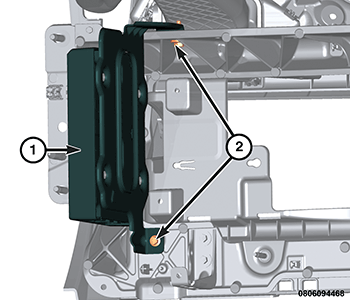

GC0177988Courtesy of CHRYSLER GROUP, LLC
  1. Position the amplifier (1) to the instrument panel carrier frame. If amplifier (1) and bracket were separated install the four fasteners to retain the amplifier (1) to the bracket.
  2. Install and securely tighten the amplifier bracket to instrument panel carrier frame bolts (2).
  3. Connect the wire harness connectors to the amplifier.
  4. Install the hush panel and the hush panel fasteners.
  5. Install the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
