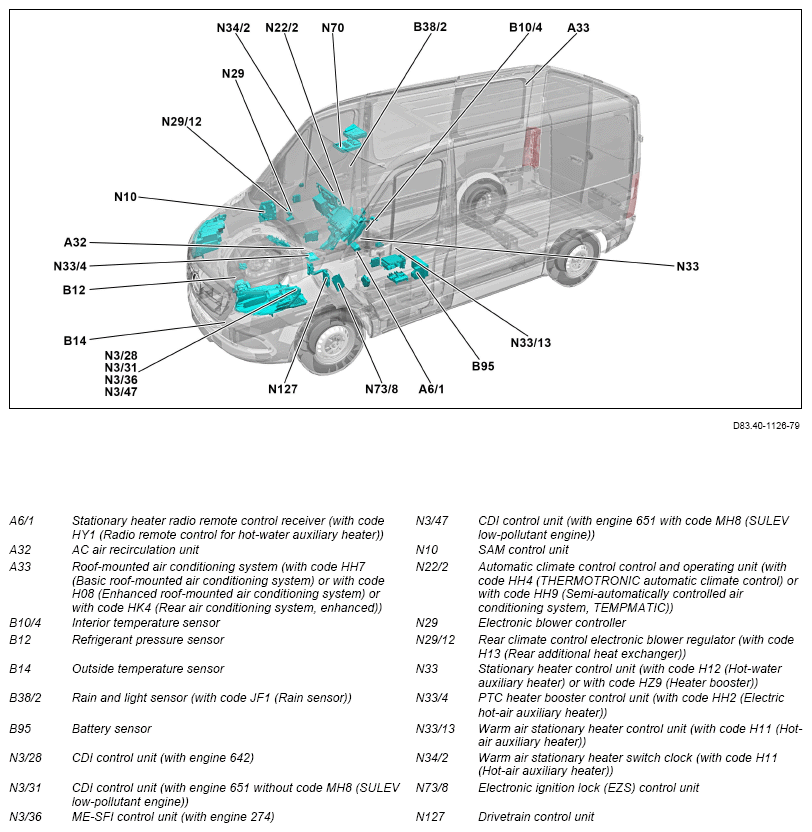

Overview Of System Components For Climate Control - GF83.40-D-9994TSA

Model 907

G13791628

Shown on model 907

Table of contents for climate control function description GF83.40-D-0994TSA
