SJB C2280e
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

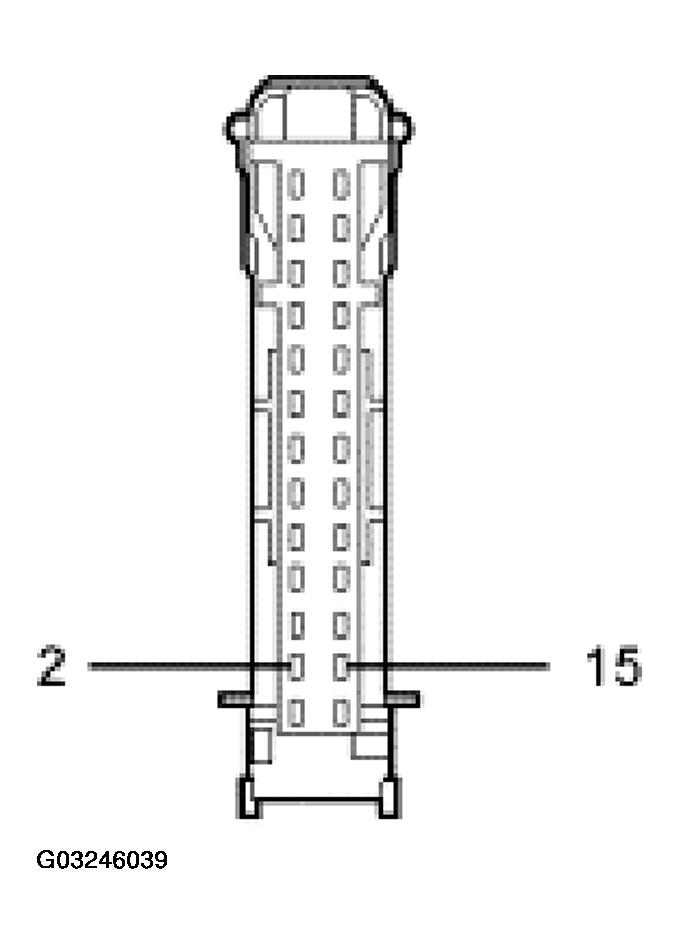

SJB C2280e
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | 1312 (LG/BK) driver door ajar switch power | 10,000 ohms or greater between the SJB and ground with the driver door ajar switch disconnected. 5 ohms or less between the SJB and the driver door ajar switch C526-1. |
| 15 | 1458 (VT/WH) LH approach lamp power | 10,000 ohms or greater between the SJB and ground with the LH approach lamp disconnected. 5 ohms or less between the SJB and the LH approach lamp C517-7 or C522-7 with memory mirrors. |
