Removal And Installation: Front: Installation

WARNING: This page is about a different car, the 2020 Chrysler Voyager and 2020 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Illustration shown with instrument panel removed from view for clarity.

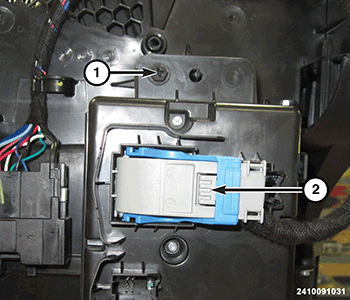

GC0177956Courtesy of CHRYSLER GROUP, LLC
  1. Position the HVAC module to the air inlet housing.
  2. Install and tighten the screws (1) that secure the HVAC module to the air inlet housing.
  3. Connect the wire harness connector (2) to the HVAC module.

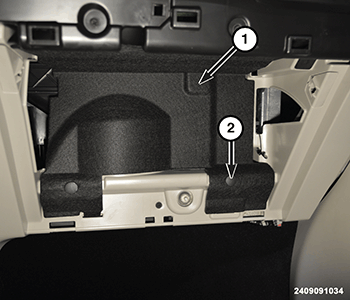

    GC0177997Courtesy of CHRYSLER GROUP, LLC
  4. Install the glove box trim panel and glove box and hush panel (1). Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  6. Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
