Remove/Install Slide Rail Of Timing Chain - Ar05.10-D-8480TSC
Engine 274 in model 907
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove camshaft positioners (4). | AR05.20-D-7204TSC | |
| 2 | Remove timing case cover. | AR01.40-D-8000TSC | |
| 3 | Remove cap (10) of slide rail pin (8). | ||
| 4 | Remove slide rail pin (8). | ||
| Specified engine oils (service) - Overview | BB00.40-P-0223-02A | ||

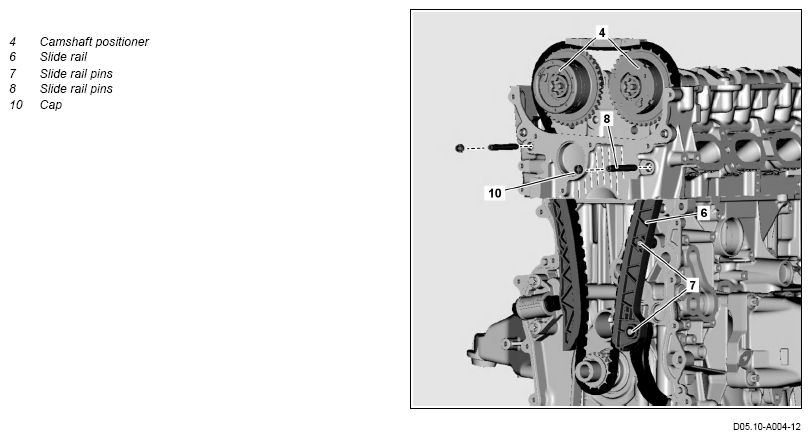

| Fig 1 | |||
| Fig 2 | |||
| 5 | Detach slide rail (6) from slide rail pins (7) and remove downwards. | ||
| 6 Install in the reverse order |
