Remove, Install Engine Timing - Ar05.10-D-7620-02TSR

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A

Engine 651 in model 907

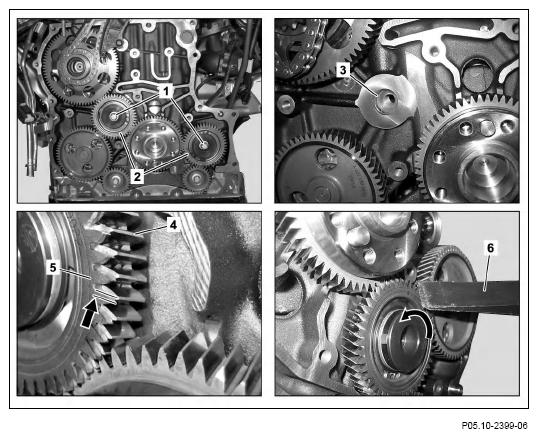

Gearwheel drive

The intermediate gears (2) each comprise two gearwheels (4, 5) pre-tensioned against each other.

Removal

1. Remove respective screw (1).
2. Pry intermediate gear (2) off the crankcase.

   For this purpose use suitable tool.

   Installation

3. Slide intermediate gear (2) into the bore (3).

   Until the gearwheel (5) makes contact with the crankshaft gear.

4. Install intermediate gear (2).

   To do this, tension gearwheel (5) counterclockwise with a suitable tool (6) so that the gearwheels (4, 5) are flush (arrow).

5. Tighten bolt (1)
