Remove/Install Level Sensor - Ar32.33-D-0009TSR

Model 907 with code CB2 (Comfort air suspension)

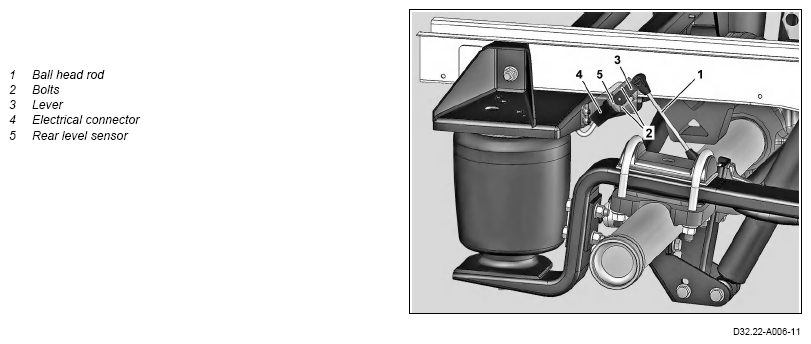

Shown on right side, without code IT5 (5.0 ton vehicle)

G13786964

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Deactivate air suspension.		AR32.22-D-6000-02TSR
2	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
3	Remove ball head rod (1) from ball head of lever (3).	: Position ball head rod (1) and lever (3) as shown. The ball head rod (1) must engage audibly in the ball head of the lever (3).
4	Disconnect electrical connector (4) from rear level sensor (5).
5	Remove rear level sensor (5).	To do this, remove screws (2). : Position rear level sensor (5) as shown.
		Screw, bracket to level sensor	*BA32.22-N-1005-03TS
6	Install in the reverse order.
	Calibrate
7	Calibrating driving level.		AR32.22-D-9000TSR

TORQUE SPECIFICATION

COMPRESSOR, VALVE UNIT, AIR SUSPENSION BELLOWS, LEVEL SENSOR, COMPRESSED-AIR RESERVOIR, CROSSMEMBER

Number	Designation		Model 907 with code CB2 (Comfort air suspension) except code IT5 (5.0 tons)	Model 907 with code CB2 (Comfort air suspension) with code IT5 (5.0 tons)
BA32.22-N-1005-03TS	Screw, bracket to level sensor	Nm	5	5
