Remove/Install Refrigerant Pressure Sensor - Ar83.30-D-5445TSF
Model 907 with engine 274, 642, 651
Shown on model 910
Shown on model 907
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Procedure for a damaged or leaky air conditioning system | AH83.30-N-0004-01A | ||
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Remove/install | |||
| 1 | Discharge air conditioning system. | AR83.30-D-1760TS | |
| 2 | Remove radiator grille. | ||

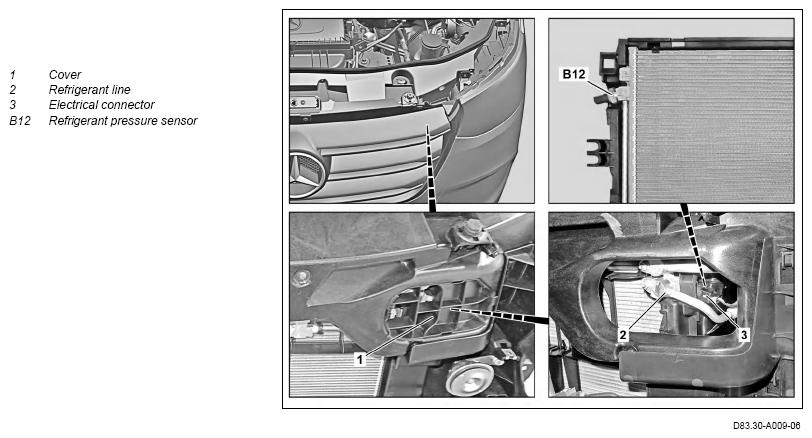

| 3 | Remove cover (1). | ||
| 4 | Unscrew nut, remove refrigerant line (2) and seal exposed connections with suitable stop plugs. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-N-1007-01TS | |||
| Fig 2 | |||

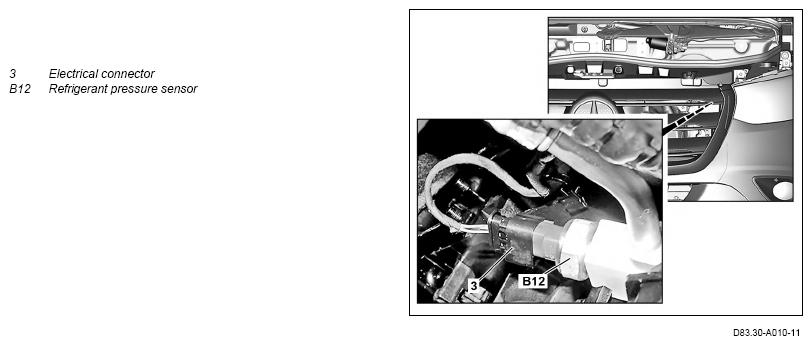

| 5 | Release and disconnect electrical connection (3). | ||
| 6 | Remove refrigerant pressure sensor (B12) and seal exposed connections with suitable stop plugs. | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-N-1006-01TS | |||
| Fig 1 | |||
| Fig 2 | |||
| 7 | Install in the reverse order | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform engine test run, check air conditioning system for proper operation and leak tightness while doing so. |
| Number | Designation | Model 907 with engine 274, 642, 651 | |
|---|---|---|---|
| BA83.30-N-1006-01TS | Refrigerant pressure sensor to condenser | Nm | 14 |
| Number | Designation | Model 907 with engine 274, 642, 651 | |
|---|---|---|---|
| BA83.30-N-1007-01TS | Nut, refrigerant condenser to refrigerant line | Nm | 12 |
