Remove/Install Circulation Pump - Ar83.25-D-1171TS
Model 907 with engine 642
Model 907 with engine 651
Shown on model 907 with engine 651
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
||
| Remove/install | |||
| 1 | Remove air filter housing | ||
| Model 907 with engine 642 | AR09.10-D-1150TSV | ||
| Model 907 with engine 651 | AR09.10-D-1150TS | ||
| 2 | Detach hoses (2) | Fig 2 | |
| 3 | Remove hoses (2) from circulation pump (1) | ||

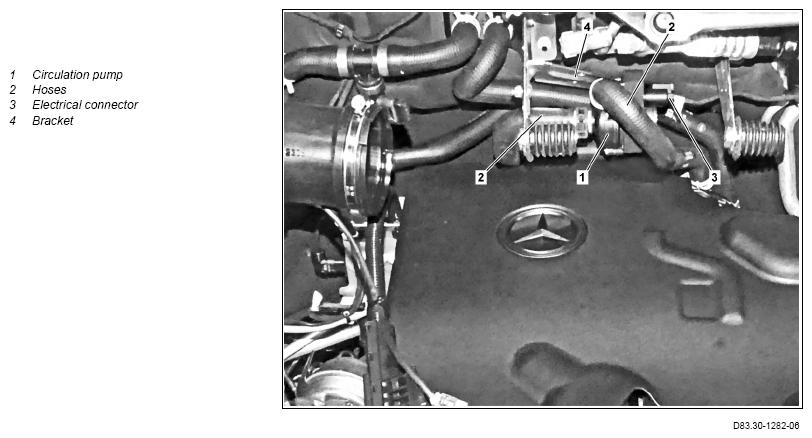

| Fig 1 | |||
| 4 | Disconnect electrical connector (3) | ||
| 5 | Remove circulation pump (1) from holder (4) | ||
| 6 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check circulation pump (1) for proper operation | ||
| 8 | Check engine cooling system for leaktightness | AR20.00-D-1011TS |
