Refrigerant Compressor, Remove/Install - Ar83.55-D-5310TSR

Engine 651 in model 907

	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
	Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0006-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Remove/install
1	Drain air conditioning system		AR83.30-D-1760TS

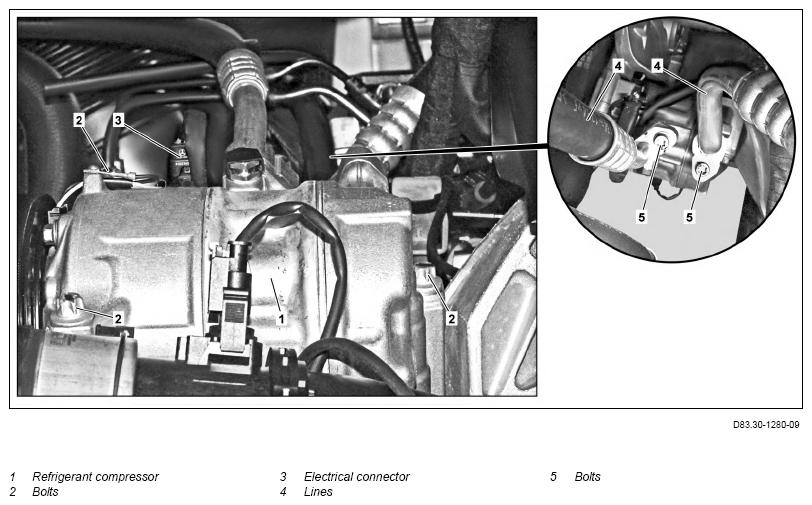

2	Remove lines (4) from refrigerant compressor (1)
	Compressor oils (specification 362.1)	To do this, remove the screw/bolts (5). Seal lines (4) and refrigerant compressor (1) using suitable stop plugs. Installation  : Replace sealing rings and moisten with compressor oil.	BB00.40-P-0362-01A
		Bolt, refrigerant line to refrigerant compressor	*BA83.30-N-1002-01TS
		Record plug	Fig 1
3	Disconnect electrical connector (3)
4	Remove poly-V-belt from refrigerant compressor (1)		AR13.22-D-1202TSR
5	Remove A/C compressor (1)	To do this, remove screws (2). Bolt, A/C compressor to major assembly carrier	*BA83.55-N-1001-02TS
6	Install in the reverse order

AIR CONDITIONING

Number	Designation		Model 907 with engine 651
BA83.30-N-1002-01TS	Bolt, refrigerant line to refrigerant compressor	Nm	20

REFRIGERANT COMPRESSOR

Number	Designation		Model 907 with engine 651
BA83.55-N-1001-02TS	Bolt, A/C compressor to major assembly carrier	Nm	20

Fig 1: Record Plug (129 589 00 91 00)
