Remove/Install Main Components Of Transmission - Ar27.50-D-0610TSC
Transmission 725.0 in model 907

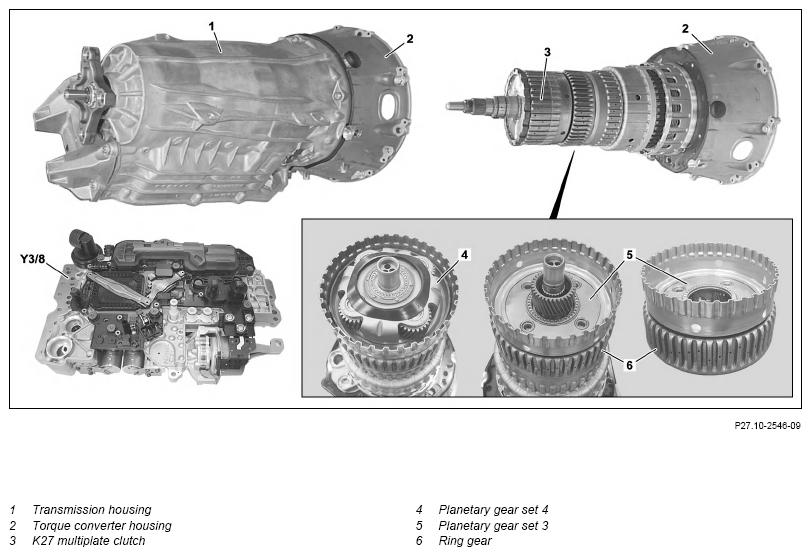

Shown on transmission 725.0 (except 725.007, 725.017, 725.047)

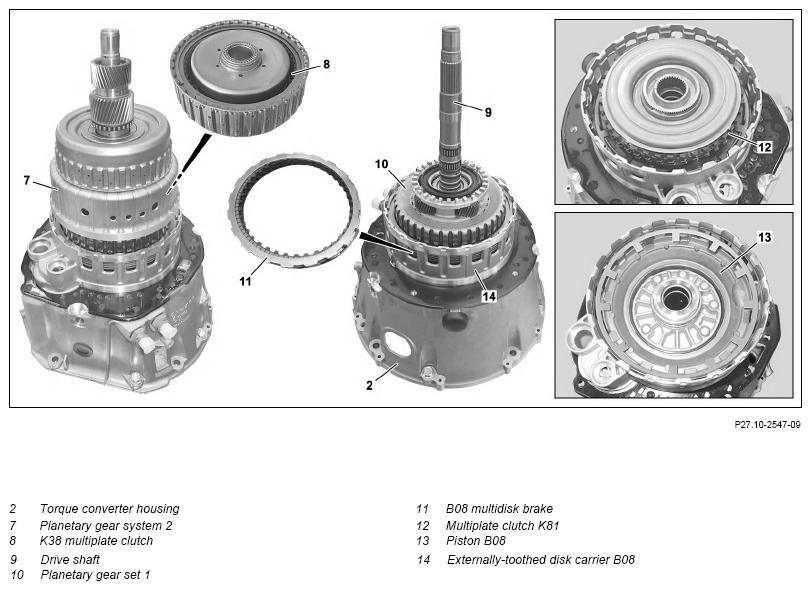

Shown on transmission 725.0 (except 725.007, 725.017, 725.047)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove transmission housing (1) from torque converter housing (2). | AR27.40-D-0003TSC | |
| 2 | Remove multiplate clutch K27 (3). | AR27.50-D-0619TSC | |
| 3 | Remove planetary gear set 4 (4) and planetary gear set 3 (5) with ring gear (6). | AR27.50-D-0623TSC | |
| 4 | Remove planetary gear set 2 (7) and multiplate clutch K38 (8) with ring gear. | AR27.50-D-0624TSC | |
| 5 | Remove drive shaft (9), planetary gear set 1 (10) with multidisk brake B08 (11) and multiplate clutch K81 (12). | AR27.50-D-0625TSC | |
| 6 | Remove piston B08 (13). | AR27.50-D-0618TSC | |
| 7 | Remove outer plate carrier B08 (14) from torque converter housing (2). | AR27.50-D-0617TSC | |
| 8 | Install in the reverse order |
