Remove/Install Oil Level Check Switch - AR18.40-P-5113LFA
Engine 276.8 in model 217, 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||

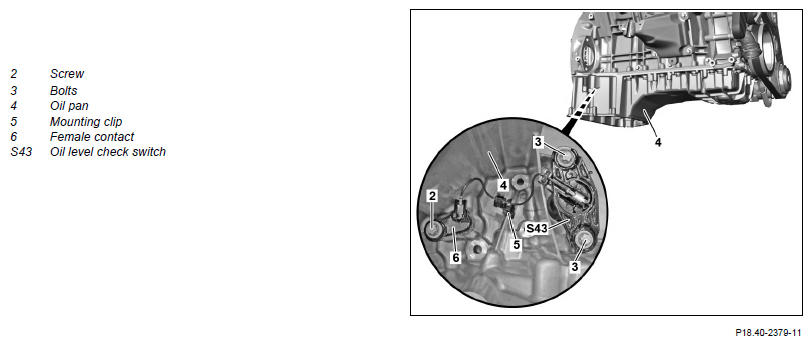

| 1 | Remove engine compartment paneling | AR61.20-P-1105LF | |
| 2 | Disconnect outer electrical connection on oil level check switch (S43) | ||
| 3 | Remove oil pan bottom section | AR01.45-P-7500LFA | |
| 4 | Unclip electrical line for switch oil level check (S43) at retaining clip (5) | ||
| 5 | Remove screw/bolts for female contact (6) and introduce female contact (6) into oil pan (4) | ||
| *BA18.40-P-1003-02C | |||
| 6 | Remove screw/bolts (3) and remove oil level check switch (S43) from bracket | *BA18.40-P-1001-02C | |
| 7 | Install in the reverse order | ||
| 8 | Check engine oil level and correct if necessary | ||
| AP18.00-P-1848U | |||
| 9 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run, while doing so check the engine and transmission for leaktightness and proper function |
OIL SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA18.40-P-1001-02C | Screw/bolt, oil level switch to bracket | Nm | 11 |
OIL SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA18.40-P-1003-02C | Screw/bolt, oil level switch connector to oil pan top section | Nm | 14 |
