Remove/Install Starter - AR15.30-P-7100LFA

Engine 276.8 in model 217, 222

Shown on model 222 without code M005 (4MATIC)

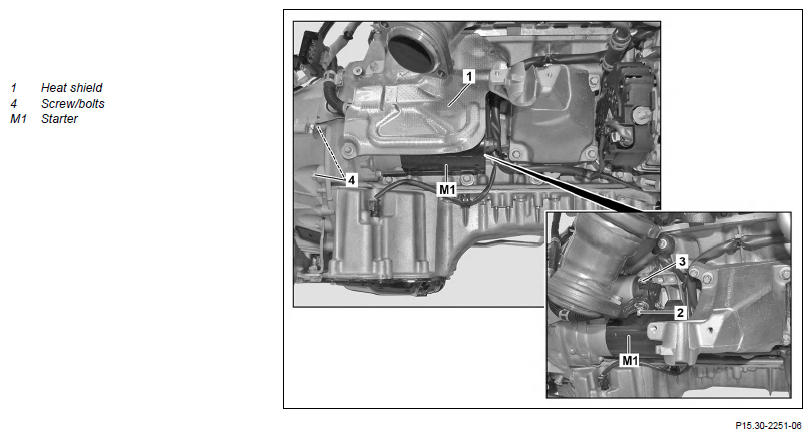

Fig 1: Starter Components Location - Engine 276.8 In Model 222

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Disconnect ground line at battery		AR54.10-P-0003LF
2	Remove steering coupling	Engine 276.8 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Engine 276.8 in model 222 up to 4/29/14 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR46.10-P-8000RK
		Engine 276.8 in model 217, 222 as of 4/30/14 with code M005 (Vehicles with 4MATIC/all-wheel drive) Only install lower engine compartment paneling after leak test.	AR46.10-P-8000LW
3	Remove right catalytic converter	Engine 276.8 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR49.10-P-5503LF
4	Remove screw/bolts of heat shield (1)
5	Remove heat shield (1)
6	Disconnect wiring harness at starter (M1)		AR15.30-P-7100-03LFA
7	Remove screw/bolts (4)
8	Remove starter (M1) from below
9	Check pinion on the starter (M1) for wear or damage	When reusing the starter (M1). In event of any wear or damage ↓ Replace starter (M1).
10	Check ring gear on drive plate for wear or damage	Rotate engine at center Bolt, crankshaft in the direction of engine rotation.
		Socket wrench bit In event of any wear or damage ↓ Replace drive plate.	Fig 2
			AR03.30-P-8001LFA
	Install
11	Insert starter (M1) from below
12	Tighten screws/bolts (4)	Bolt, starter to crankcase/transmission	*BA15.30-P-1003-01J
13	Connect wiring harness at starter (M1)		AR15.30-P-7100-03LFA
		Nut, connection for terminal designation 50	*BA15.30-P-1002-01J
		Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
14	Position heat shield (1)
15	Fasten screw/bolts of heat shield (1)	Bolt/nut, heat shield to crankcase	*BA15.30-P-1005-01J
16	Install right three way catalytic converter	Engine 276.8 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR49.10-P-5503LF
17	Install steering coupling	Engine 276.8 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Engine 276.8 in model 222 up to 4/29/14 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR46.10-P-8000RK
		Engine 276.8 in model 217, 222 as of 4/30/14 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR46.10-P-8000LW
18	Connect ground line to battery		AR54.10-P-0003LF
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
19	Perform an engine test run; check engine for functionality and leaktightness
20	Install lower engine compartment paneling	Engine 276.8 in model 222 with code Z07 (B7 armoring on special protection version)	AR61.40-P-1001LFS
		Engine 276.8 in model 217 Engine 276.8 in model 222 except code Z07 (B7 armoring on special protection version)	AR61.20-P-1105LF

Fig 2: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
