Remove/Install Crankshaft Hall Sensor - AR15.12-P-2136LFA
Engine 276.8 in model 217, 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Remove front engine cover | ||
| 2 | Remove left-hand air filter housing | AR09.10-P-1150LFA | |
| 3 | Remove lower engine compartment paneling | AR61.20-P-1105LF | |

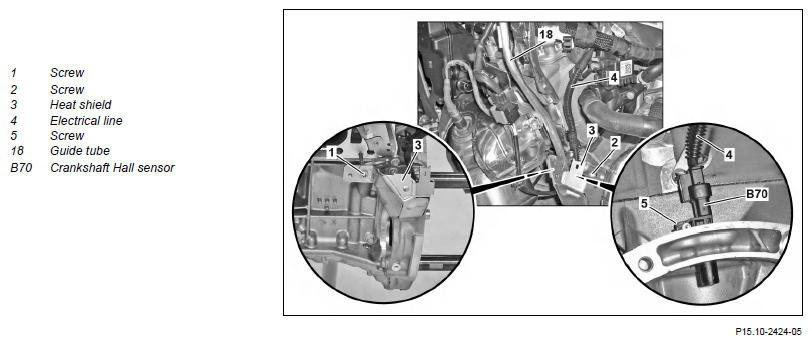

| 4 | Remove screw/bolts (1, 2) and heat shield (3) for crankshaft Hall sensor (B70) | ||
| 5 | Disconnect electrical line (4) on crankshaft Hall sensor (B70) | ||
| 6 | Remove screw/bolt (5) and crankshaft Hall sensor (B70) upwards | *BA15.10-P-1001-03E | |
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run and check the engine for oil loss |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1001-03E | Bolt, crankshaft Hall sensor to crankcase | Nm | 8 |
