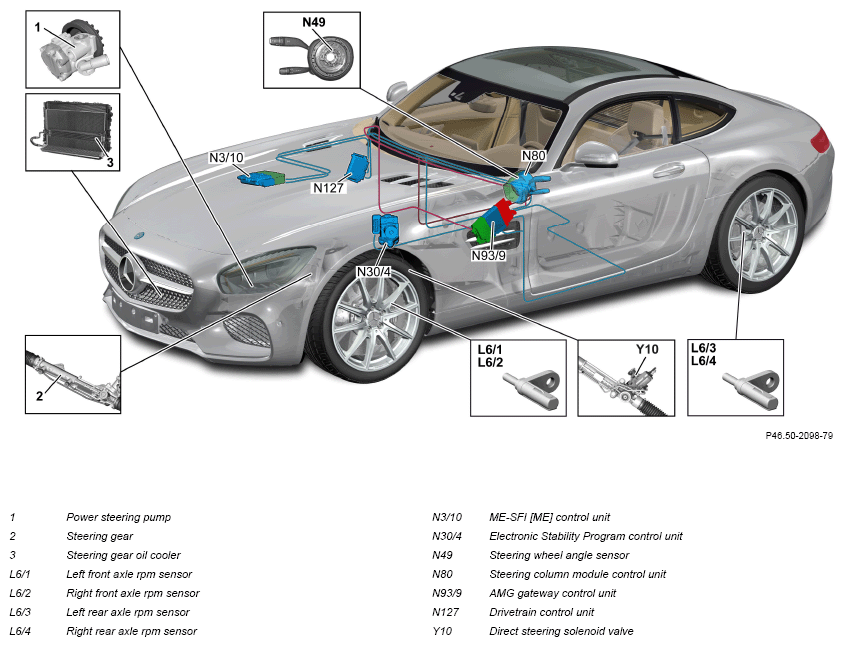

Overview Of System Components For Direct Steering - GF46.50-P-9998RR
Model 190
Shown: Model 190.377
| Component description for ME-SFI (ME) control unit | Model 190 with engine 178.9 | GF07.61-P-6000MNB | |
| N3/10 | |||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RR | |
| Component description for steering column tube module control unit | Model 190 up to 11/30/18 up to model year 2019 |
GF54.21-P-6051RR | |
| N80 | |||
| Model 190 as of 12/1/18 as of model year 2019 |
GF54.21-P-6051RRM | ||
| N80 | |||
| AMG gateway control unit, component description | N93/9 | GF54.21-P-1001RR | |
| Drivetrain control unit, component description | Model 190 with engine 178.9 | GF54.21-P-2141MNB | |
| N127 | |||
| Table of contents for function description for direct steering | GF46.50-P-0998RR |
