Remove/Install Catalytic Converter Temperature Sensor - AR07.04-P-0004OGR

ENGINE 642 in MODEL 166, 292

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Remove right air filter housing		AR09.10-P-1150OGR
2	Remove respective section of the underfloor paneling		AR61.30-P-1001GQ

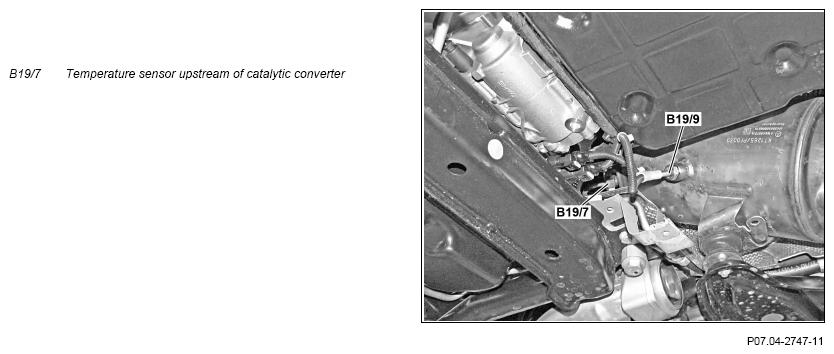

3	Disconnect electrical connection for the temperature sensor upstream of catalytic converter (B19/7)
4	Remove temperature sensor upstream of catalytic converter (B19/7)	Align the temperature sensor upstream of catalytic converter (B19/7) by turning in such a way that the distance to the heat shield is adequate. The electrical feed line can get damaged otherwise. Coat thread of temperature sensor upstream of catalytic converter (B19/7) with heat-resistant lubricant.	*BA07.04-P-1001-01G
		Engine 642 in model 166, 292 with code 474 (Diesel particulate filter) Temperature sensor at catalytic converter Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
5	Install in the reverse order
	Check
6	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Check leaktightness of exhaust system when engine is running	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A

SENSORS

Number	Designation		Engine 642
BA07.04-P-1001-01G	Temperature sensor at catalytic converter	Nm	45

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DBL 6879.20	A 000 989 76 51
