Remove/Install Left Fuel Pressure Sensor - AR07.04-P-0201MNG

Engine 177 in Model 253

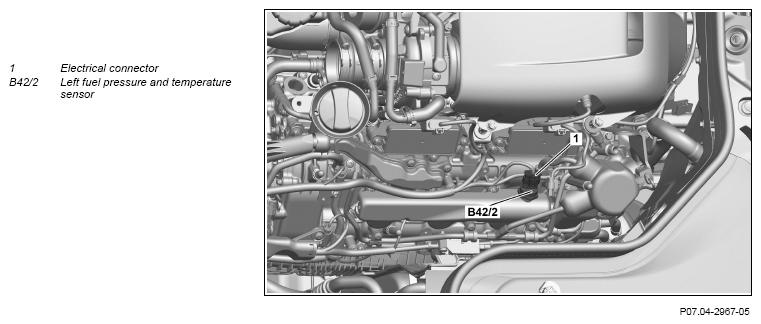

Fig 1: Left Fuel Pressure Sensor Components Location - Engine 177 In Model 253

Courtesy of BMW OF NORTH AMERICA, INC.

	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Remove left-hand air filter housing		AR09.10-P-1151MNG
2	Relieve fuel pressure over diagnostic socket		AR07.03-P-1460-01MNG
		Dust protection cap to service connection	*BA07.03-P-1005-01H
		Pressure hose	Figure
3	Release and disconnect electrical connector at left fuel pressure and temperature sensor (B42/2)
4	Clean rail in the area of left fuel pressure and temperature sensor (B42/2)	Absolute cleanliness is essential when working on the high-pressure fuel circuit. Use only lint-free cleaning cloths Damage will occur otherwise on the high-pressure fuel circuit.
4		Assembly cleaner	*BR00.45-Z-1028-04A
5	Cover area around left fuel pressure and temperature sensor (B42/2) with suitable rags and carefully slightly release left fuel pressure and temperature sensor (B42/2)	Wear oil-resistant, fiber-free gloves lined with rubber.
5		Box wrench attachment, 27 mm	Figure
6	Unscrew left fuel pressure and temperature sensor (B42/2) from rail and remove	: Use new left fuel pressure and temperature sensor (B42/2), as left fuel pressure and temperature sensor (B42/2) is only designed to be screwed on once. Leaks can occur otherwise. Collect exuded fuel using a suitable absorbent rag.
7	Install in the reverse order
8	Read out and erase fault memory		AD00.00-P-2000-04B
9	Inspect fuel system for leaks		AR07.03-P-1010-04MM
	Risk of accident from Vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure Vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Perform an engine test run and check engine for proper operation and leaktightness

INJECTION NOZZLES, INJECTION VALVES, LINES

Number	Designation		Engine 177
BA07.03-P-1005-01H	Dust protection cap to service connection	Nm	1

Fig 2: Identifying Box Wrench Attachment, 27_MM (000 589 10 99 30)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of BMW OF NORTH AMERICA, INC.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	Adolf Wurth GmbH & Co. KG
