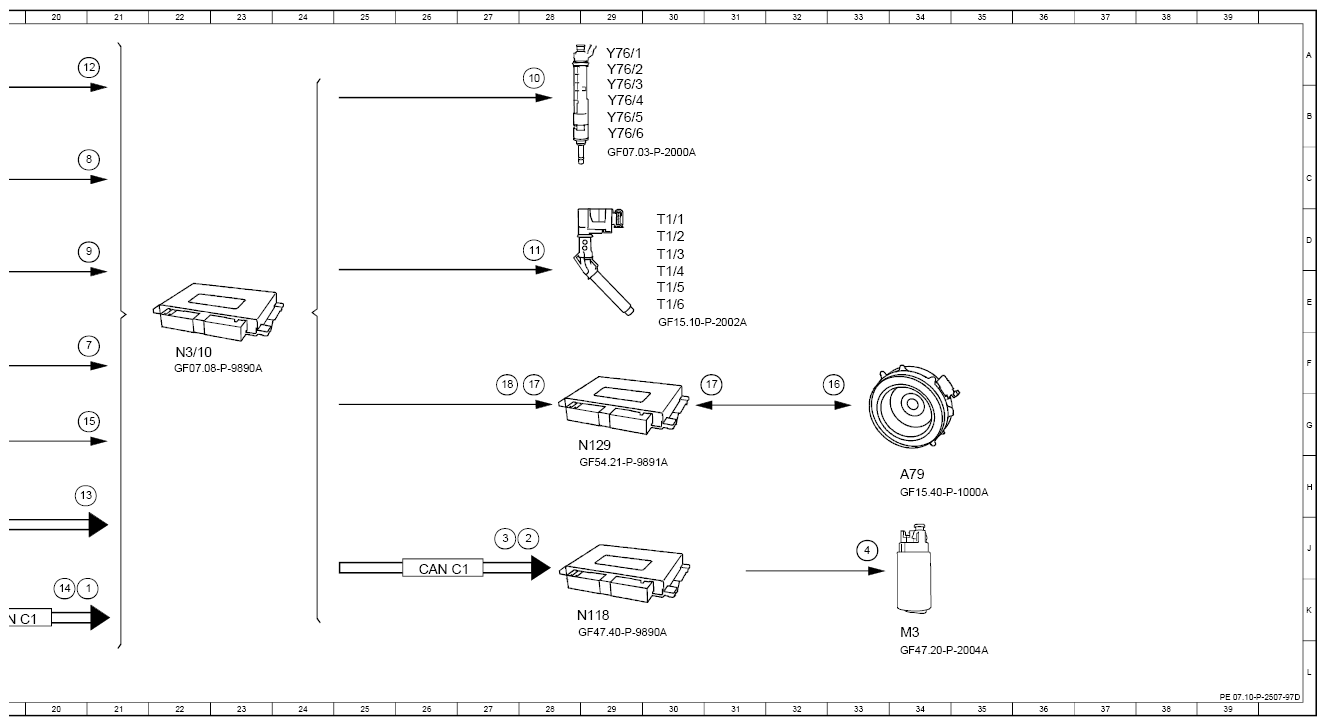

Function Schematic For Starting - PE07.10-P-2507-97D
Engine 256 in model 167
Engine 256 in model 213, 238 as of model year 2021
Engine 264 in model 213, 238, 257 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 11K |
| 1 | Circuit 50, status | 15K |
| 1 | Circuit 50, status | 20K |
| 10 | Fuel injectors, actuation | 28B |
| 11 | Ignition coils, actuation | 28D |
| 12 | Circuit 87, status | 20A |
| 13 | Gear range, status | 20H |
| 14 | KEYLESS-GO start/stop button, status | 5K |
| 14 | KEYLESS-GO start/stop button, status | 10K |
| 14 | KEYLESS-GO start/stop button, status | 15K |
| 14 | KEYLESS-GO start/stop button, status | 20K |
| 15 | Oil level, signal | 20G |
| 16 | Starter generator, actuation | 33G |
| 17 | Starter-alternator, status | 17A |
| 17 | Starter-alternator, status | 31G |
| 18 | Starter-alternator, request | 27G |
| 2 | Fuel pump, request ON | 28J |
| 3 | Fuel pump, specified pressure request | 27J |
| 4 | Fuel pump, actuation | 33J |
| 7 | Engine speed, signal | 21F |
| 8 | Camshaft Hall sensor, signal | 21C |
| 9 | Coolant temperature sensor, signal | 21D |
| A79 | Integrated starter generator | 34H |
| B11/4 | Coolant temperature sensor | 3E |
| B40/6 | Engine oil fill level sensor | 3H |
| B6/15 | Intake camshaft Hall sensor | 3C |
| B6/16 | Exhaust camshaft Hall sensor | 3D |
| B70 | Crankshaft Hall sensor | 3F |
| CAN C1 | Drive train CAN | 8J |
| CAN C1 | Drive train CAN | 19K |
| CAN C1 | Drive train CAN | 26K |
| CAN C1 | Drive train CAN | 16J |
| F152/3 | Engine compartment fuse and relay module | 3B |
| F152/3kN | Circuit 87M relay | 3B |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 14K |
| M3 | Fuel pump (FP) | 34L |
| N118 | Fuel pump control unit | 29K |
| N127 | Drivetrain control unit | 16L |
| N129 | Starter generator control unit | 29H |
| N3/10 | ME-SFI [ME] control unit | 22F |
| N30/4 | Electronic Stability Program control unit | 12L |
| N73 | Electronic ignition switch control unit | 6L |
| S2/2 | Start/stop button with ECO start/stop function button | 3K |
| T1/1 | Cylinder 1 ignition coil | 30D |
| T1/2 | Cylinder 2 ignition coil | 30D |
| T1/3 | Cylinder 3 ignition coil | 30D |
| T1/4 | Cylinder 4 ignition coil | 30E |
| T1/5 | Cylinder 5 ignition coil | 30E |
| T1/6 | Cylinder 6 ignition coil | 30E |
| Y3/8 | Fully integrated transmission control controller unit | 3J |
| Y76/1 | Cylinder 1 fuel injector | 29A |
| Y76/2 | Cylinder 2 fuel injector | 29A |
| Y76/3 | Cylinder 3 fuel injector | 29B |
| Y76/4 | Cylinder 4 fuel injector | 29B |
| Y76/5 | Cylinder 5 fuel injector | 29B |
| Y76/6 | Cylinder 6 fuel injector | 29C |
