Remove/Install Engine Oil Directional Control Valve - AR18.10-P-0002MSA
Engine 256.9 In Model 213, 238, 257, 290
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Remove/install | |||
| 1 | Remove charge-air distributor. | AR09.41-P-8683MSA | |
| 2 | Remove additional compressor. | Engine 256.9 in model 213 238 257 290 with code M016 (Uprated engine) | AR09.50-P-4770MSA |
| 3 | Remove directional control valve and collect escaping engine oil with a rag. | *BA18.00-P-1005-02MRT | |

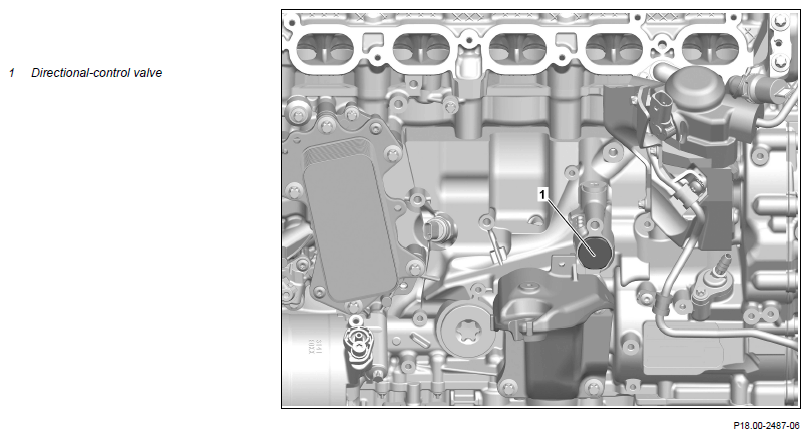

| Fig 2 | |||
| 4 | Install in the reverse order. | ||
| Check | |||
| 5 | Check engine oil level and correct. | ||
| Engine 256.9 in model 213, 238, 290 | AP18.00-P-1812MKI | ||
| Engine 256.9 in model 257 | AP18.00-P-1812BKI | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 7 | Install upper engine cover. | AR01.10-P-2405MSA |
ENGINE LUBRICATION, OIL COOLING SYSTEM
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA18.00-P-1005-02MRT | Directional control valve to crankcase | Nm | 20 |
