Remove/Install Belt Driven Alternator - AR15.40-P-5032MND
Engine 276.8 In Model 213, 238
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect ground line at battery | Engine 276.8 in model 213 | AR54.10-P-0003LW |
| Engine 276.8 in model 238 | AR54.10-P-0003LWO | ||
| 2 | Remove lower center and center engine compartment paneling | AR61.20-P-1105LWE | |
| 3 | Remove boost pressure control pressure transducer and place with attached lines to one side | AR07.17-P-7004MND | |
| 4 | Remove fan unit | AR20.40-P-5050MND | |
| 5 | Attach guard plate to radiator | ||
| WF58.50-P-0110-01A | |||
| 6 | Remove right charge air pipe | AR09.41-P-1326MND | |

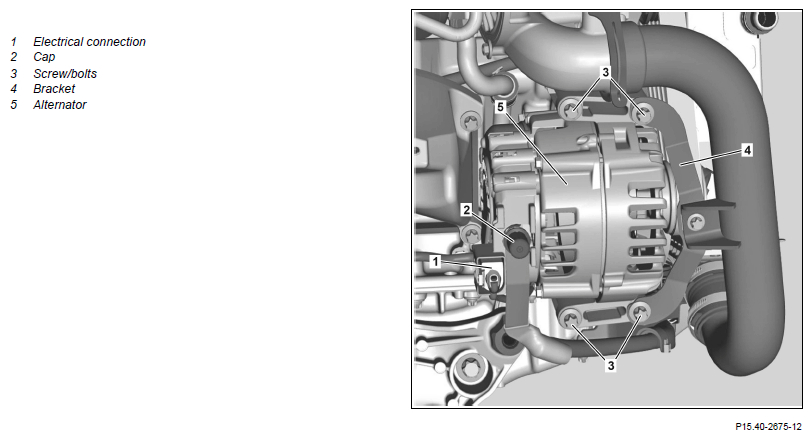

| 7 | Remove poly-V belt from alternator (5) | AR13.22-P-1202MND | |
| 8 | Remove wiring harness on generator (5) | AR15.40-P-5032-01MND | |
| *BA15.40-P-1002-01F | |||
| 9 | Remove screw/bolts (3) and lay alternator (5) on the front axle carrier remove holder (4) and screw/bolts (3) | *BA15.40-P-1001-01F | |
| 10 | Take alternator (5) upwards and out | ||
| 11 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform an engine test run while checking for proper operation of alternator (5) |
ALTERNATOR
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Stage 1 | Nm | 20 |
| Stage 2 | Nm | - | ||
ALTERNATOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 |
