Remove/Install Left Front Knock Sensor - AR15.12-P-2186MNE
Engine 177 in model 213
| Remove/install | |||
| 1 | Remove engine with front axle carrier | Engine 177 in model 213 with code M005 (4MATIC) | AR01.10-P-2500MNE |

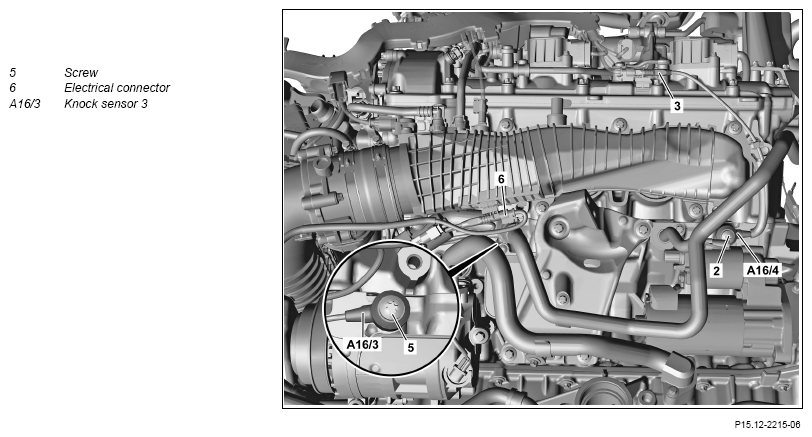

| 2 | Release and disconnect electrical connector (6) and unclip electric line on holder | ||
| 3 | Unscrew screw/bolt (5) and remove knock sensor 3 (A16/3) | *BA15.10-P-1001-02G | |
| 4 | Install in the reverse order | ||
| 5 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform an engine test run and check engine for proper function |
KNOCK SENSORS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1001-02G | Bolt, knock sensor to crankcase | Nm | 20 |
