Remove/Install Overhead Control Panel Control Unit - AR82.20-P-1000LWO
Model 238.3
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Start up the overhead control panel control unit (N70) | When replacing the overhead control panel control unit (N70). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

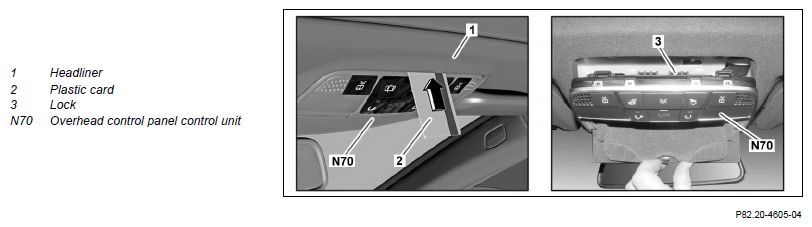

| 3 | Insert a plastic card (2) or a similar object (approx. 2 mm thick) along a perpendicular line at the center between roof lining (1) and overhead control panel control unit (N70), unlock the lock (3) in direction of travel (arrow A) and fold overhead control panel control unit down (N70) | ||

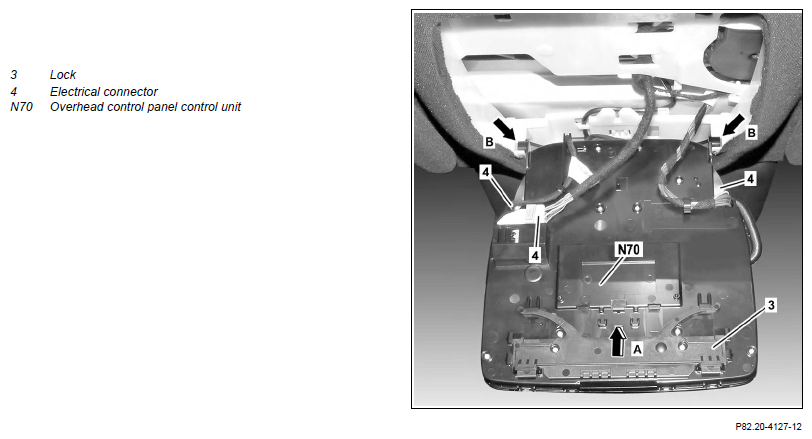

| 4 | Release and disconnect all electrical connectors (4) from overhead control panel control unit (N70) | ||
| 5 | Unhook overhead control panel control unit (N70) from the brackets (arrows B) and remove | ||
| 6 | Install in the reverse order |
