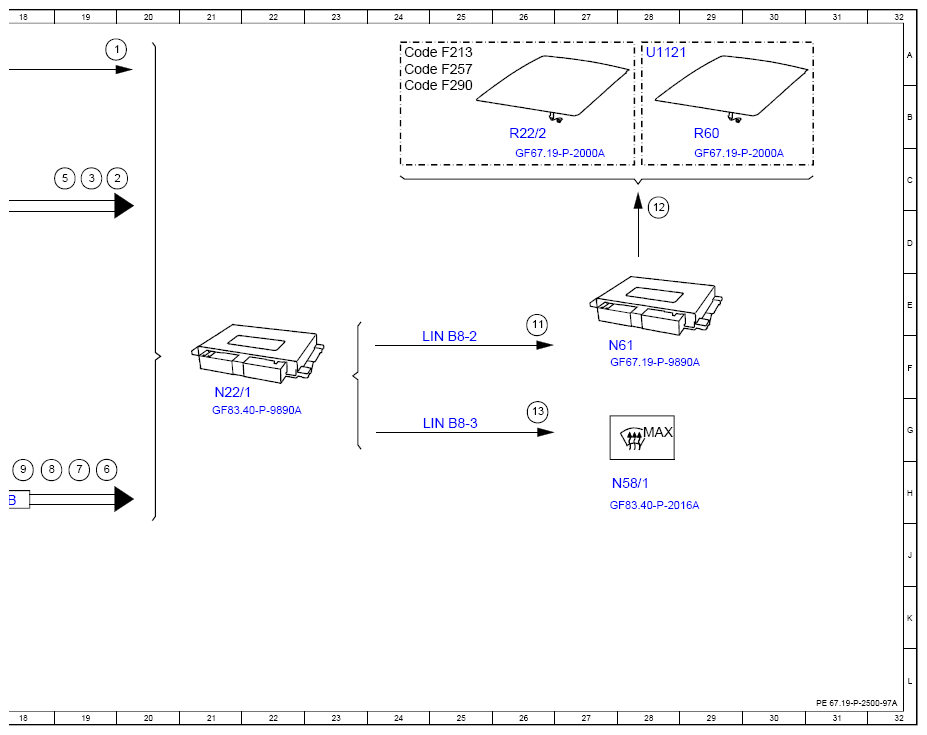

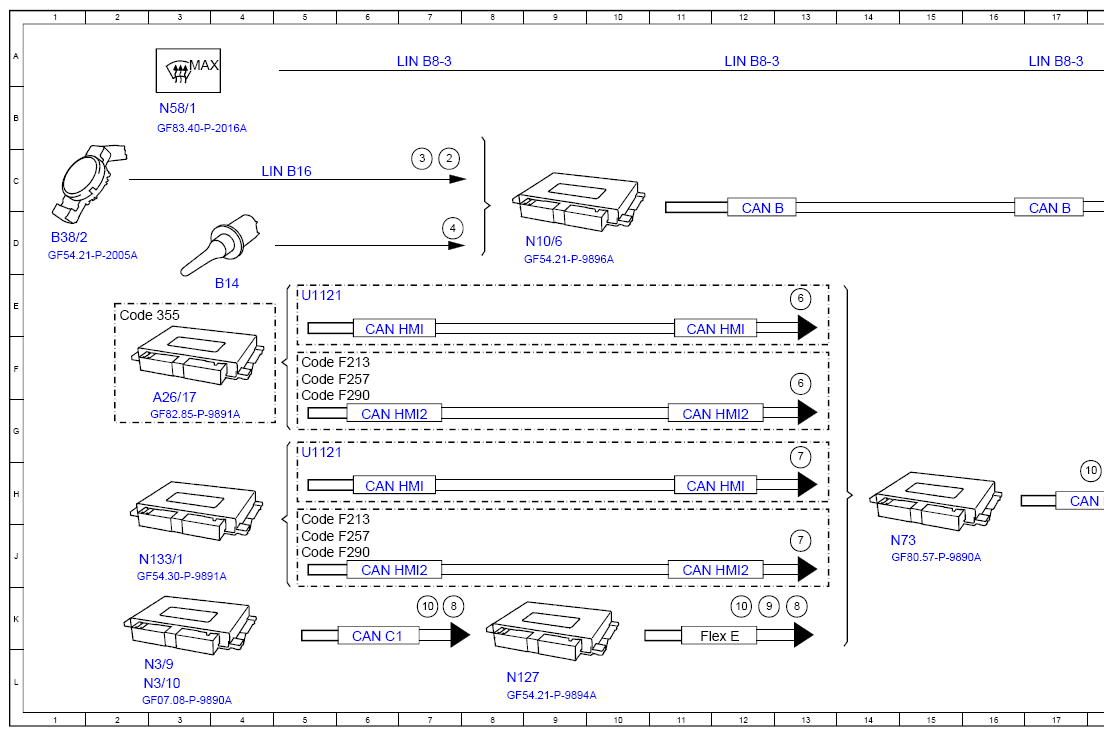

Function Schematic, Heat Windshield - PE67.19-P-2500-97A
Model 167 with code 597 (Heated windscreen)
Model 213, 257, 290 as of model year 2021 with code 597 (Heated windscreen)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Defrost button, status | 20A |
| 10 | Coolant temperature, signal | 7K |
| 10 | Coolant temperature, signal | 12K |
| 10 | Coolant temperature, signal | 7K |
| 11 | Windshield heater, request | 26E |
| 12 | Windshield heater, actuation | 28C |
| 13 | Windshield heater, status | 26G |
| 2 | Dew point temperature, signal | 7C |
| 2 | Dew point temperature, signal | 19C |
| 3 | Windshield surface temperature, signal | 7C |
| 3 | Windshield surface temperature, signal | 19C |
| 4 | Outside temperature sensor, signal | 7D |
| 5 | Outside temperature, signal | 19C |
| 6 | GPS, signal | 13E |
| 6 | GPS, signal | 13F |
| 7 | Displayed vehicle speed, signal | 19H |
| 7 | Displayed vehicle speed, signal | 13J |
| 8 | Engine running, signal | 18H |
| 8 | Engine running, signal | 7K |
| 8 | Engine running, signal | 7K |
| 9 | Drivetrain operational, signal | 18H |
| 9 | Drivetrain operational, signal | 18H |
| A26/17 | Head unit | 3G |
| B14 | Outside temperature sensor | 4E |
| B38/2 | Rain/light sensor with additional functions | 1D |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 17H |
| CAN B | Interior CAN | 17D |
| CAN C1 | Drivetrain CAN | 6K |
| CAN HMI | User interface CAN | 6H |
| CAN HMI | User interface CAN | 11H |
| CAN HMI | User interface CAN | 6E |
| CAN HMI | User interface CAN | 11E |
| Code 355 | Pre installation for navigation retrofit | 2E |
| Flex E | Chassis FlexRay | 11K |
| LIN | Local Interconnect Network | 5C |
| LIN | Local Interconnect Network | 7A |
| LIN | Local Interconnect Network | 12A |
| LIN | Local Interconnect Network | 17A |
| LIN | Local Interconnect Network | 26E |
| LIN | Local Interconnect Network | 26G |
| N10/6 | 9D | |
| N127 | Drivetrain control unit | 8L |
| N133/1 | Instrument cluster control unit | 3J |
| N22/1 | Climate control control unit | 21F |
| N3/10 | ME-SFI [ME] control unit | 3L |
| N3/9 | CDI control unit | 3L |
| N58/1 | Climate control operating unit | 3B |
| N58/1 | Climate control operating unit | 28H |
| N61 | Windshield heater control unit | 27F |
| N73 | Electronic ignition switch control unit | 14J |
| R60 | Windshield heater | 29B |
