Remove/install sidebag sensor - AR91.60-P-0710LW
MODEL 205.0/1/2

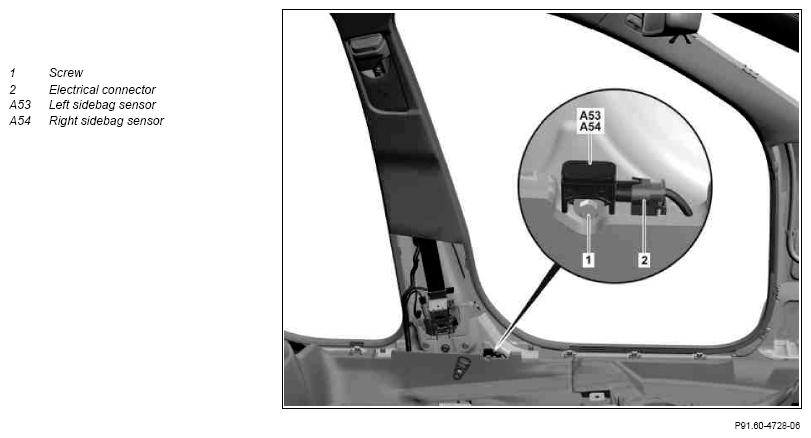

Shown on left side of vehicle
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Remove/install | |||
| 1 | Remove left or right B-pillar paneling at bottom | AR68.30-P-4700LW | |
| 2 | Disconnect ground line at the on-board electrical system battery | AR54.10-P-0003LW | |
| 3 | Disconnect electrical connection (2) | ||
| 4 | Remove bolt (1) | *BA91.60-P-1008-01O | |
| 5 | Remove left sidebag sensor (A53) or right sidebag sensor (A54) | ||
| 6 | Install in the reverse order |
AIRBAG
| Number | Designation | MODEL 205.0/1/2 | |
|---|---|---|---|
| BA91.60-P-1008-01O | Screw/bolt, sidebag sensor to B-pillar | Nm | 8 |
