Service Campaign 2020060019 - Update AMG Drive Unit Control Unit Software (P-SC-2020060019)
Publication date: 2020-07-10Reference number: P-SC-2020060019
Supersedes refnos: 2020060019
SERVICE CAMPAIGN 2020060019 - UPDATE AMG DRIVE UNIT CONTROL UNIT SOFTWARE
SERVICE CAMPAIGN BULLETIN
| MERCEDES-BENZ: | MY19 205, 213, 290(C-Class, E-Class, GT-Class) |
SERVICE INFORMATION

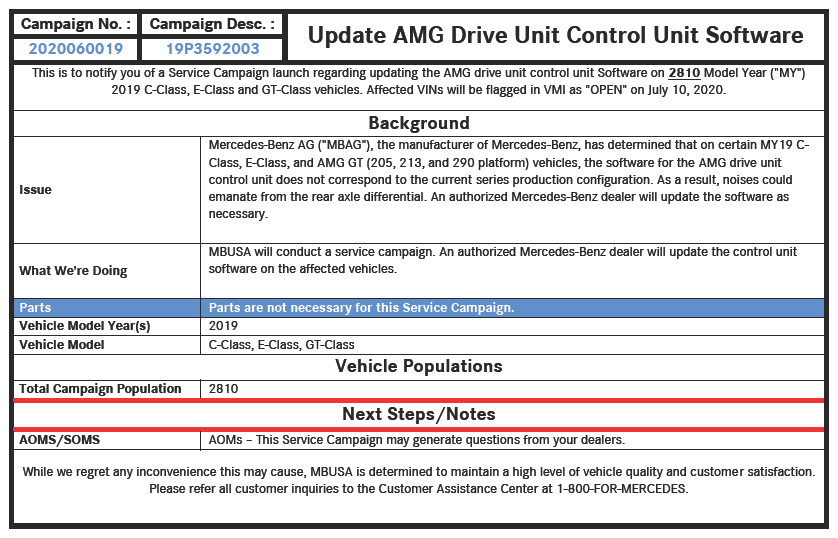

IMPORTANT NEW SERVICE CAMPAIGN LAUNCH INFORMATION
Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FOR-MERCEDES.
Sincerely,
Gregory Gunther
Department Manager, Vehicle Compliance & Analysis
TO: ALL MERCEDES-BENZ CENTERS
SUBJECT
Models C-Class, E-Class, and AMG GT (205, 213, 290 platform)
Model Year 2019
Mercedes-Benz AG ("MBAG"), the manufacturer of Mercedes-Benz, has determined that on certain MY19 C-Class, E-Class, and AMG GT (205, 213, and 290 platform) vehicles, the software for the AMG drive unit control unit does not correspond to the current series production configuration. As a result, noises could emanate from the rear axle differential. An authorized Mercedes-Benz dealer will update the software as necessary.
Prior to performing this Service Campaign:
- Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired. Always Check VMI for any open campaigns, and perform accordingly.
- Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.
Approximately 2810 vehicle is affected.
Order No. P-SC-2020060019
This bulletin has been created and maintained in accordance with MBUSA-SLP S423QH001, Document and Data Control, and MBUSA-SLP S424HH001, Control of Quality Records.
- Use Xentry 3/19 with all associated patches or higher.
- Follow the steps exactly as described in Xentry.
- Connect battery charger (battery voltage >12.5V).
- Ensure all electrical consumers are switched-off.
- In the event of software/SCN update issues, contact Star Diagnosis User Help Desk via. XSF ticket.
- Refer to Star Diagnosis System (SDS) Best Practices Guide.
PROCEDURE
- Connect XENTRY Diagnosis.
- Update AMG DRIVE UNIT (AMG DRVU) software.
To do this, select menu item "Quick test view? N145/1 - AMG DRIVE UNIT (AMG DRVU) Adaptations? Control unit update? Update of control unit software".
Then follow the user guidance in XENTRY Diagnosis.
WARRANTY INFORMATION
Operation: Connect/disconnect battery charger (02-5058)
Star Diagnosis System (SDS), Connect/disconnect (02-4762)
Update N145/1 - AMG DRIVE UNIT (AMG DRVU) (02-9334)
| Damage Code | Operation Number | Labor Time (hrs.) | ||
|---|---|---|---|---|
| 35 920 03 8 | 02-5058(1) | 0.1 | ||
| 02-4762(1) | 0.1 | |||
| 02-9334 | 0.1 | |||
|
||||
