Component Description For Sound System Amplifier Control Unit - GF82.62-P-5010RFM

Model 205

as of model year 2019

with code 853 ("Midline" sound system)

except code 810 (Premium Sound System)

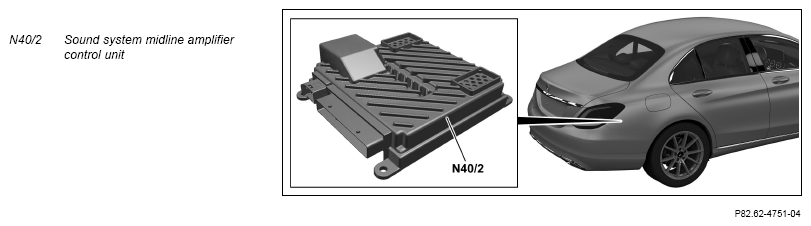

Fig 1: Sound System Amplifier Control Unit Components Location - Model 205, As Of Model Year 2019; With Code 853, Except Code 810

Courtesy of MERCEDES-BENZ USA

Location

The Midline sound system amplifier control unit is located in the trunk behind the right sidewall paneling on a bracket.

Tasks

The Midline sound system amplifier control unit has the following tasks:

Receive signals
Signal optimization and amplification
Transmitting signals

Receive signals

The Midline sound system amplifier control unit receives the input factors via the following connections:

Direct lines
Media Oriented System Transport (MOST)
CAN (with code B63 (Sporty engine sound))

Direct lines

The Midline sound system amplifier control unit reads in the following signals (among others) via direct lines:

Wake-up signal from the head unit (A26/17)
Muting of the audio sources (mute function), by the HERMES control unit (N112/9) (with code 362 (HERMES LTE))

MOST

The Midline sound system amplifier control unit is a MOST subscriber and receives the following signals (among others):

Control and audio signals from the head unit
Speed signal from the head unit for the speed-dependent volume control (SDV [GAL])

CAN (with code B63 (Sporty engine sound))

The Midline sound system amplifier control unit receives control signals (e. g. engine RPM, engine load and vehicle speed) via the drive CAN (CAN C1) from the ME-SFI control unit (N3/10).

Signal optimization and amplification

Optimization of the input signals through digital signal processing
Supporting surround sound
Supporting stereo entertainment channels and announcement channels (e.g. for voice output of navigation announcements, etc.)
Amplifying of the input signals and assignment of the output to the speakers

Transmitting signals

The Midline sound system amplifier control unit transmits electrical signals to the following components for audio output:

Center instrument panel speaker (H4/27)
Left footwell bass speaker (H4/42) (right-hand drive vehicle)
Right footwell bass speaker (H4/43) (left-hand drive vehicle)
Left front door tweeter (H4/68)
Left front door tweeter (H4/69)
Left rear door/side trim tweeter (H4/70) (except Model 205.3/4)
Right rear door/side trim tweeter (H4/71) (except Model 205.3/4)
Left front door midrange speaker (H4/72)
Right front door midrange speaker (H4/73)
Left rear door/side trim mid-range speaker (H4/80) (except Model 205.3/4)
Right rear door/side trim mid-range speaker (H4/81) (except Model 205.3/4)
Left rear side wall trim mid-range speaker (H4/102) (Model 205.3/4)
Right rear side wall trim mid-range speaker (H4/103) (Model 205.3/4)
Left rear side wall trim tweeter (H4/104) (Model 205.3/4)
Right rear side wall trim tweeter (H4/105) (Model 205.3/4)

Sound amplifier control unit wiring diagram

PE82.62-P-2101-97FBC
