Sketch Sheet Form For Paint Damage - Of98.00-P-3000-01DB
WARNING: This page is about a different car, the 2020 Mercedes-Benz SLC43 AMG, 2019 Mercedes-Benz SLC43 AMG, 2018 Mercedes-Benz SLC43 AMG, and 2017 Mercedes-Benz SLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL
172
| Brach/Agency company no. | Customer | |||
| Vehicle ident No. | Repair order no. | |||
| Tester: Name | Date | |||
| License plate No. | Original registration date | Model | Engine no. | odometer reading: km/miles |
| MB color shade | ||||
| Damage inflicted while driving (e.g.: accident, dents, scratches, stone chipping, etc.) are to be specified separately | ||||
| When was damage noticed? | ||||
| State of paintwork | □ well maintained | □ neglected | ||
| Required remedial action | Cost estimate Wage Material |
|||
| General | ||||
| Comments of Warranty Department | ||||

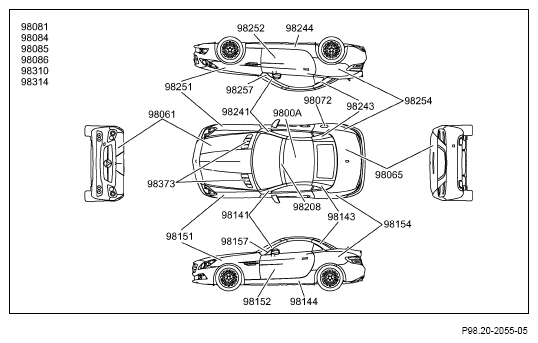

| Paint | Damaged part text | Corrosion | Paint | Damaged part text | Corrosion |
|---|---|---|---|---|---|
| 9800A | Retractable hardtop front part | 79201 | 98154 | Left rear fender | 63A01 |
| 98061 | Engine hood | 88201 | 98157 | Left trim on A-pillar | |
| 98065 | Trunk lid | 75001 | 98208 | Roof frame | 63105 |
| 98072 | Fuel filler flap | 75101 | 98241 | Right A-pillar | 63P11 |
| 98081 | Body, general | 98243 | Right C-pillar | 63P31 | |
| 98084 | Engine compartment | 98244 | PVC entrance, right | ||
| 98085 | Underfloor protection | 98251 | Right front fender | 88N01 | |
| 98086 | Underfloor wax preservation | 98252 | Right front door | 72T04 | |
| 98141 | Left A-pillar | 63B11 | 98254 | Right rear fender | 63N01 |
| 98143 | Left C-pillar | 63B31 | 98257 | Right trim on A-pillar | |
| 98144 | PVC entrance, left | 98310 | Engine compartment wax preservation | ||
| 98151 | Left front fender | 88A01 | 98314 | Trunk/cargo area | |
| 98152 | Left front door | 72E04 | 98373 | Engine hood vent grille |

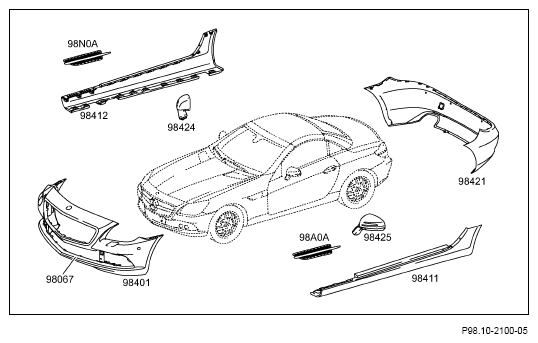

| Paint | Damaged part text | Corrosion | Paint | Damaged part text | Corrosion |
|---|---|---|---|---|---|
| 98067 | Front trim/front spoiler | 98424 | Right outside mirror | ||
| 98401 | Front bumper paneling | 98425 | Left outside mirror | ||
| 98411 | Outside left side member trim | 98A0A | Left front fender air inlet | ||
| 98412 | Outside right side member trim | 98N0A | Right front fender air inlet | ||
| 98421 | Rear bumper paneling |
| Paint | Damaged part text | Corrosion | Damaged part text |
|---|---|---|---|
| K1 | Dust/dirt inclusion | 47 | corroded/oxidized |
| K2 | Rotor | DA | Rusted through |
| K3 | Color deviation | dB | Rusted through from inside to outside |
| K4 | Cloudy | DC | Slight corrosion |
| K6 | Edge zone marking | DD | Heavier corrosion |
| K7 | Defects | ||
| K9 | Adhesion faults | ||
| L1 | Mask edges | ||
| L2 | Cracks | ||
| L3 | Preservation residue | ||
| L4 | Overspray | ||
| L6 | Blisters | ||
| L7 | Orange peel development/structure | ||
| L8 | Grinding scoring | ||
| L9 | Polishing marks | ||
| LA | Abrasion | ||
| LB | Fading | ||
| LD | Insufficient hiding power | ||
| Y4 | Separation of the outer and inner surfaces from the core | ||
| Y6 | Popping | ||
| Y7 | Crater |
