Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97FBS
Engine 264.9 in Model 205
as of model year 2019
Engine plug
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 161L |
| A16/1 | Knock sensor 1 | 95L |
| A16/2 | Knock sensor 2 | 96L |
| B11/4 | Coolant temperature sensor | 98L |
| B163/4 | Temperature sensor upstream of gasoline particulate filter | 132L |
| B28/11 | Pressure sensor downstream of air filter | 110L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 114L |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 112L |
| B4/25 | Fuel pressure and temperature sensor | 116L |
| B4/4 | Purging pressure sensor | 119L |
| B40/6 | Engine oil fill level sensor | 80L |
| B6/15 | Intake camshaft Hall sensor | 99L |
| B6/16 | Exhaust camshaft Hall sensor | 101L |
| B70 | Crankshaft Hall sensor | 103L |
| Code 460 | Canada version | 117C |
| Code 494 | USA version | 117C |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 129C |
| Code 835 | Additional parts for South Korea vehicles | 117D |
| Code 945 | China Stage 6 exhaust treatment | 117D |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 129C |
| Code AA5 | Power Variant Basic | 29G |
| Code AA5 | Power Variant Basic | 48E |
| Code AA6 | Power Variant Uprated 1 | 41E |
| Code B01 | 48V Technology | 17G |
| Code B01 | 48V Technology | 125C |
| Code L | LEFT-HAND DRIVE | 81C |
| Code L | LEFT-HAND DRIVE | 10H |
| Code R | RIGHT-HAND DRIVE | 81C |
| Code R | RIGHT-HAND DRIVE | 10H |
| F32/3 | Engine compartment pre-fuse box | 55L |
| F32/3f9 | Fuse 9 | 54K |
| G2 | Alternator | 127L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 82L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 85L |

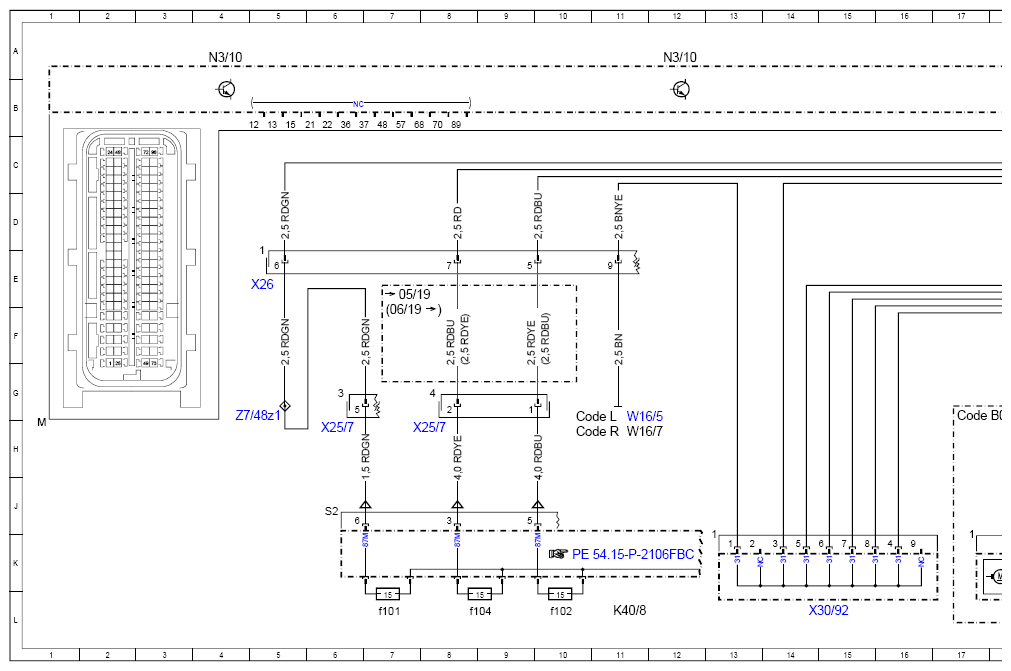

| K40/8 | Engine fuse and relay module | 11L |
| K40/8f101 | Fuse 101 | 7L |
| K40/8f102 | Fuse 102 | 10L |
| K40/8f104 | Fuse 104 | 8L |
| LIN C1 | Drive train LIN | 127K |
| LIN C2 | Engine LIN | 45K |
| Ml/10 | Starter-alternator | 19L |

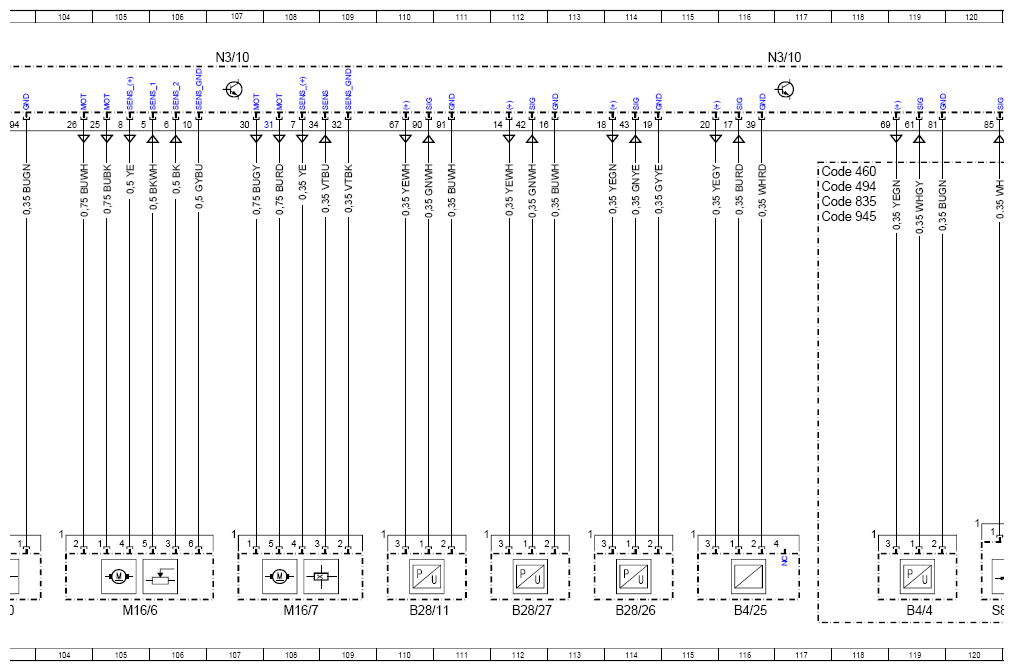

| M16/6 | Throttle valve actuator | 105L |
| M16/7 | Boost pressure control flap actuator | 108L |

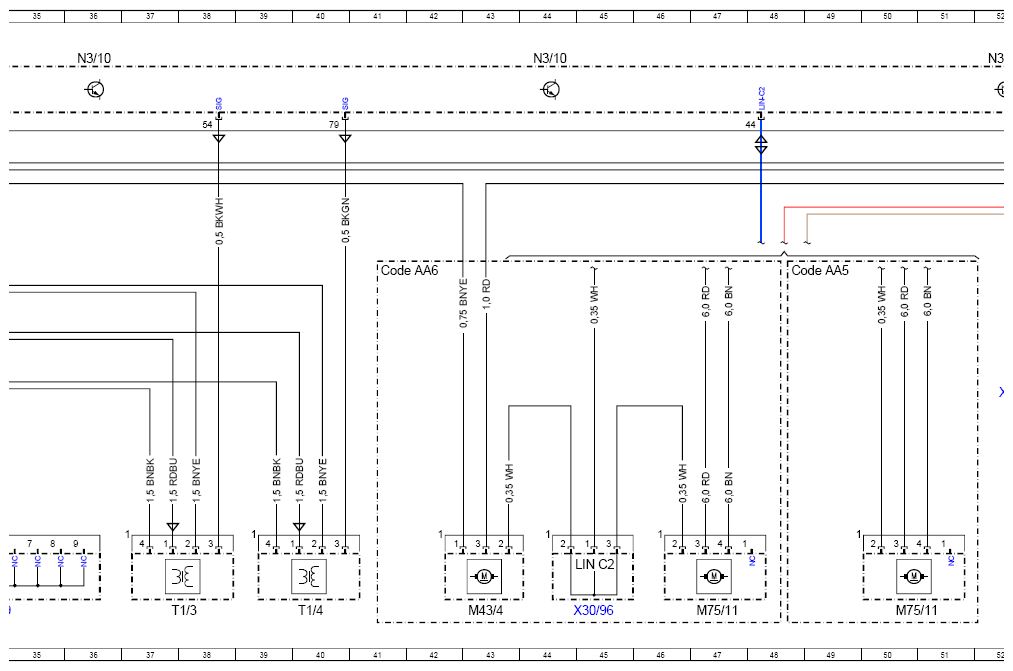

| M43/4 | Starter-alternator coolant pump | 43L |
| M75/11 | Electric coolant pump | 50L |
| M75/11 | Electric coolant pump | 47L |

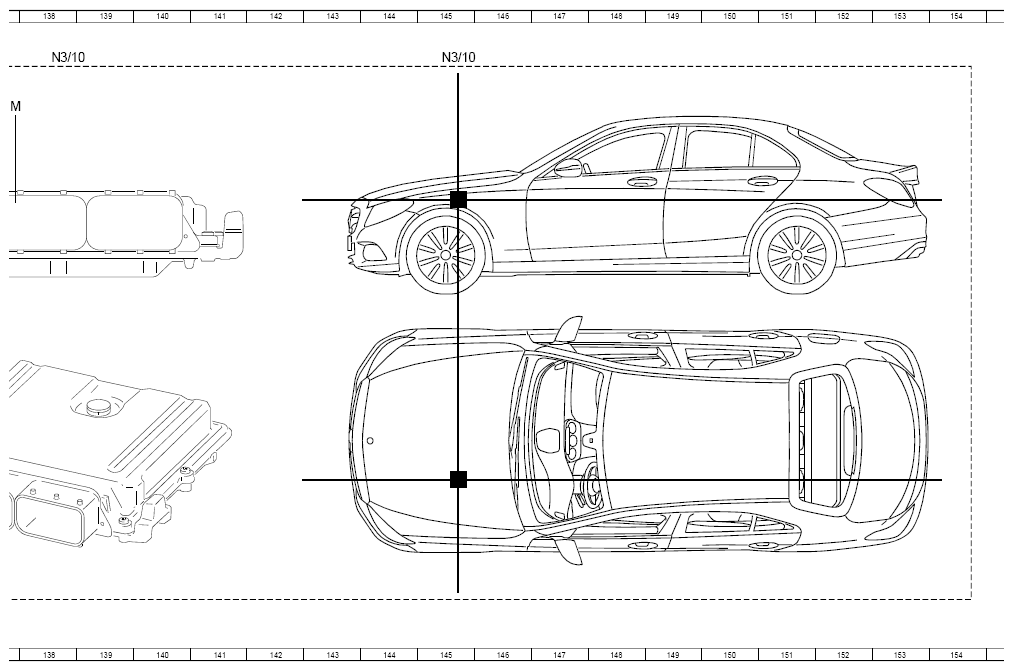

| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 69A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 107A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 117A |
| N3/10 | ME-SFI [ME] control unit | 124A |
| N3/10 | ME-SFI [ME] control unit | 132A |
| N3/10 | ME-SFI [ME] control unit | 145A |
| N3/10 | ME-SFI [ME] control unit | 138A |
| R48 | Coolant thermostat heating element | 78L |

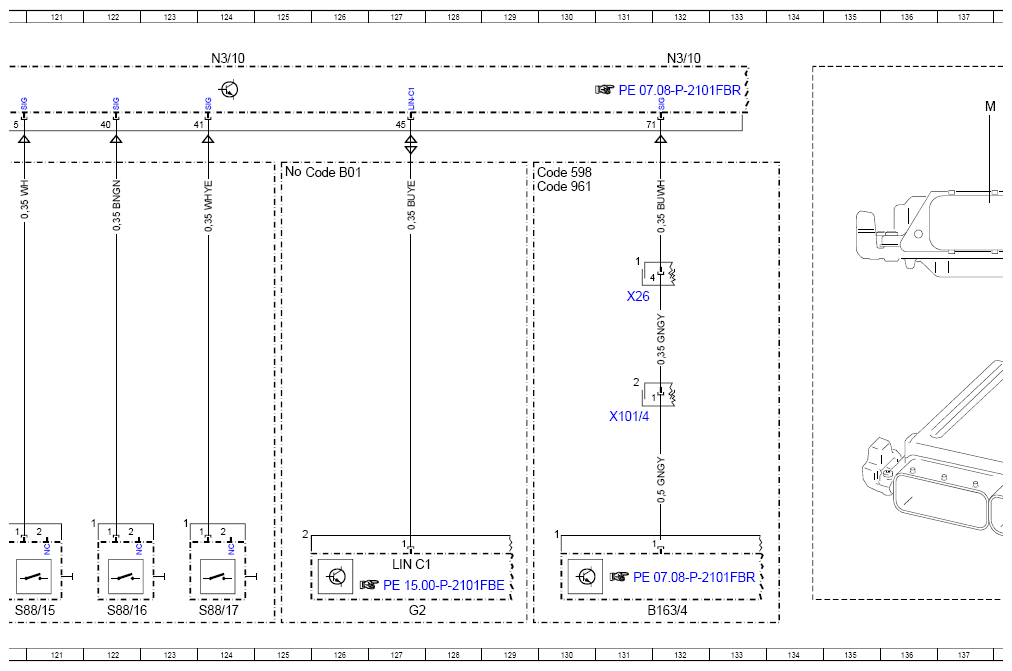

| S88/15 | Vent line contact switch 1 | 120L |
| S88/16 | Vent line contact switch 2 | 122L |
| S88/17 | Vent line contact switch 3 | 124L |

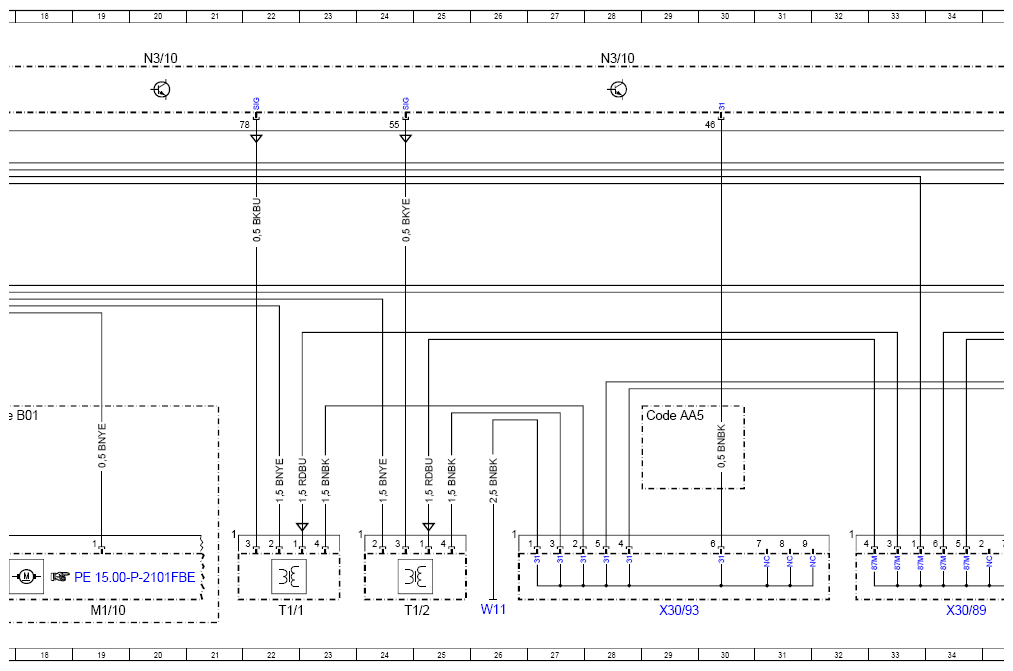

| T1/1 | Cylinder 1 ignition coil | 22L |
| T1/2 | Cylinder 2 ignition coil | 24L |
| T1/3 | Cylinder 3 ignition coil | 37L |
| T1/4 | Cylinder 4 ignition coil | 40L |
| W11 | Combustion Engine ground point | 26L |
| W16/5 | Left major assembly compartment electronics ground point | 11H |
| W16/7 | Right major assembly compartment electronics ground point | 11H |
| W2 | Right front ground point (at lamp unit) | 53L |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 131H |
| X192/4 | Electric coolant pump electrical connector | 52G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 6H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 8H |
| X26 | Interior and Engine wiring harness electrical connector | 5E |
| X26 | Interior and Engine wiring harness electrical connector | 131E |
| X30/89 | Power supply potential distributor 1 | 34L |
| X30/90 | Power supply potential distributor 2 | 59L |
| X30/91 | Power supply potential distributor 3 | 75L |
| X30/92 | Circuit 31 potential distributor 1 | 15L |
| X30/93 | Circuit 31 potential distributor 2 | 29L |
| X30/96 | Engine LIN (LIN C2) potential distributor | 45L |

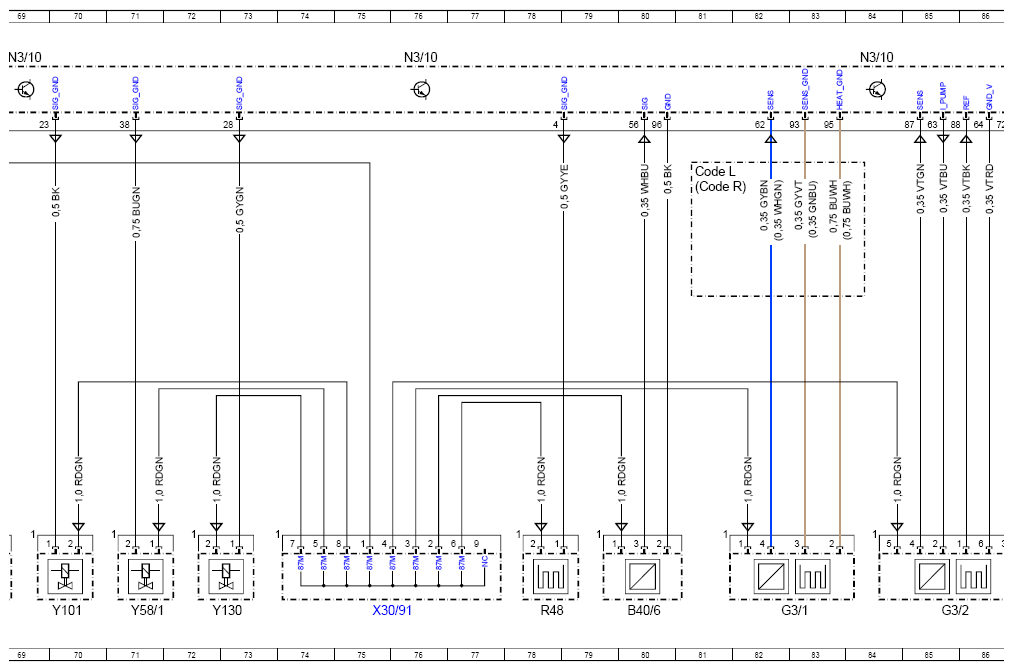

| Y101 | Divert air switchover valve | 70L |
| Y130 | Engine oil pump valve | 73L |

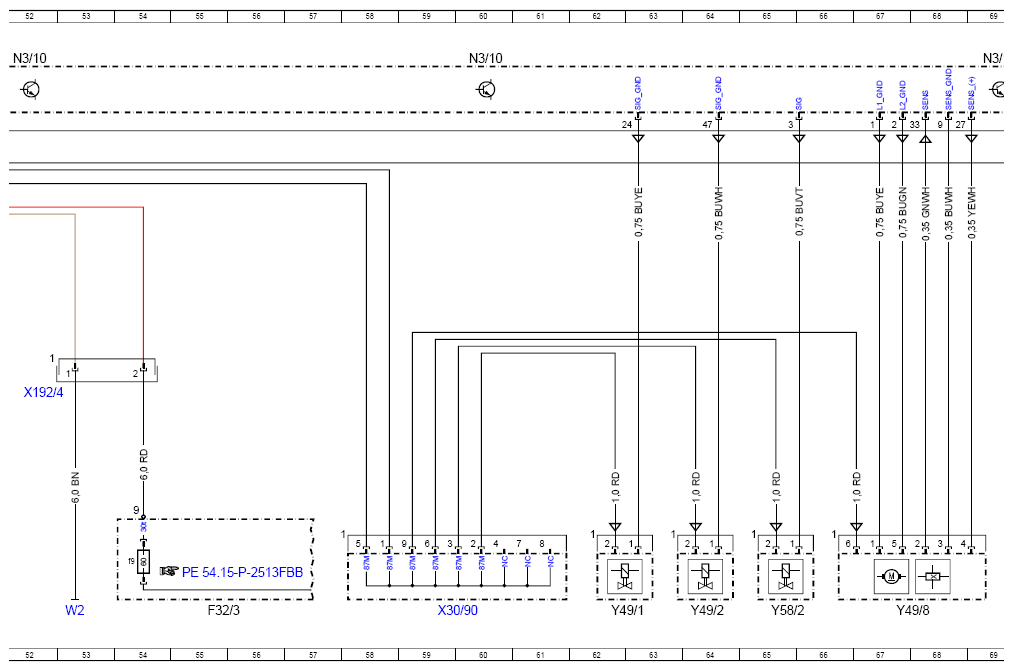

| Y49/1 | Intake camshaft solenoid | 62L |
| Y49/2 | Exhaust camshaft solenoid | 64L |
| Y49/8 | Intake camshaft valve lift switching actuator | 67L |
| Y58/1 | Purge control valve | 71L |
| Y58/2 | Partial load operation crankcase ventilation valve | 65L |

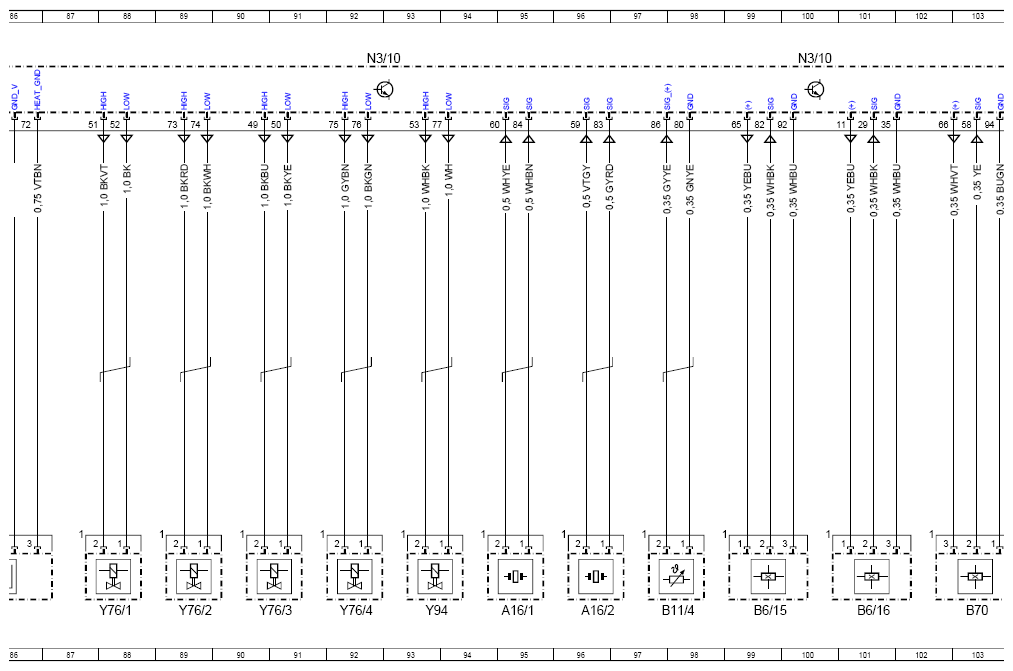

| Y76/1 | Cylinder 1 fuel injector | 88L |
| Y76/2 | Cylinder 2 fuel injector | 89L |
| Y76/3 | Cylinder 3 fuel injector | 90L |
| Y76/4 | Cylinder 4 fuel injector | 92L |
| Y94 | Quantity control valve | 93L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 5G |
