Assignment Of Rear Fuse And Relay Module - GF54.15-P-1256-30RFM
Model 205
as of model year 2019
Model 253.99

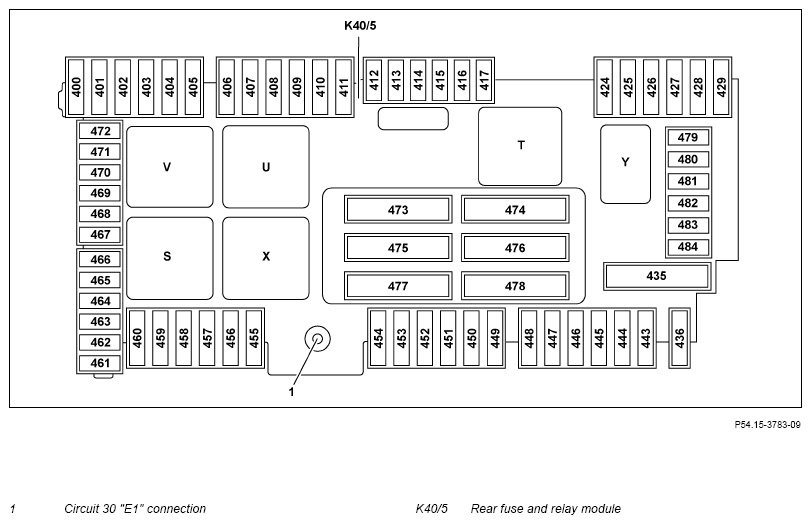

Variant 1
| Slot | Fuse Identification | Circuit | Wire Identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| 400 | Electrical fuse 400 (K40/5f400) | 87 | - | Spare | - |
| 401 | Electrical fuse 401 (K40/5f401) | 87 | - | Spare | - |
| 402 | Electrical fuse 402 (K40/5f402) | 87 | - | Spare | - |
| 403 | Electrical fuse 403 (K40/5f403) | 87 | 0.35 PKGN | Model 205 with Code U67 (230 V socket in interior): DC/AC converter control unit (N24/3) |
5 |
| 404 | Electrical fuse 404 (K40/5f404) | 87 | 2.5 RDGN | Except Code 221 (Electrically adjustable left driver's seat), except Code 241 (Electrically adjustable left memory switch for front passenger seat) and except Code 275 (Memory Package): Driver seat partially electric seat adjustment switch (S22/1) |
30 |
| 405 | Electrical fuse 405 (K40/5f405) | 87 | 2.5 RDYE | Except Code 222 (Electrically adjustable right front seat), except Code 242 (Electrically adjustable front passenger seat with memory function) and except Code 275 (Memory Package): Front passenger seat partially electric seat adjustment switch (S23/1) |
30 |
| 406 | Electrical fuse 406 (K40/5f406) | 30t | 2.5 RD | Left-hand drive vehicle Model 205: Left front door control unit (N69/1) |
30 |
| Right-Hand drive vehicle Model 205: Right front door control unit (N69/2) |
|||||
| 407 | Electrical fuse 407 (K40/5f407) | 30t | 0.35 RD | Model 253.99: Circuit 30t end sleeve (Z265z3) |
5 |
| 408 | Electrical fuse 408 (K40/5f408) | 30t | 2.5 RD | Model 205.0/1/2: Right rear door control unit (N69/4) |
30 |
| Model 205.3 with Code U02 (Electric seat belt extender), Model 205.4: Rear control unit (N22/6) |
|||||
| 2.5 RDWH | Left-hand drive vehicle Model 253.99: Left rear door control unit (N69/3) |
||||
| Right-Hand drive vehicle Model 253.99: Right rear door control unit (N69/4) |
|||||
| 409 | Electrical fuse 409 (K40/5f409) | 30t | 1.0 RDGN | With Code U79 (BlueTEC (SCR) diesel exhaust treatment, 3rd generation): AdBlue® control unit (N118/5) |
15 |
| 410 | Electrical fuse 410 (K40/5f410) | 30t | 2.5 RDWH | With Code 467 (Electronic differential lock): Electronic differential control unit (N3/2) |
25 |
| 411 | Electrical fuse 411 (K40/5f411) | 30t | 4.0 RD | Model 205 with Code 299 (PRE-SAFE® system): Left front reversible emergency tensioning retractor (A76) |
30 |
| 2.5 RD | Model 253.99: Power electronics control unit (N129/1) |
||||
| 412 | Electrical fuse 412 (K40/5f412) | 30t | 0.5 RD | With Code ME05 (Hybrid Drive 80KW Variant (Including Plug-In)): Battery management system control unit (N82/2) |
5 |
| 0.5 RDGN | Model 253.99 with Code 299 (PRE-SAFE® system): Left front reversible emergency tensioning retractor (A76) |
||||
| 413 | Electrical fuse 413 (K40/5f413) | 30t | 0.5 RDBK | With Code B01 (48V technology): 48 V on-board electrical system battery (G1/3) |
5 |
| 0.75 RD | Model 253.99: DC/DC converter control unit (N83/1) |
||||
| 414 | Electrical fuse 414 (K40/5f414) | 30t | 0.35 RDWH | Model 205 with Code 865 (TV tuner): TV tuner control unit (N143) |
5 |
| Model 253.99 with Code 475 (Tire pressure monitor): Tire pressure monitor control unit (N88) |
|||||
| 0.5 RDWH | Model 253.99 with Code 865 (TV tuner): TV tuner control unit (N143) |
||||
| 415 | Electrical fuse 415 (K40/5f415) | 30t | 0.35 RDYE | With Code P21 (Air quality package): Perfume atomizer generator (N59) |
5 |
| 416 | Electrical fuse 416 (K40/5f416) | 30t | 0.35 RDWH | Model 205 with Code 475 (Tire pressure monitor): Tire pressure monitor control unit (N88) |
5 |
| 0.75 RD | Model 253.99: Battery management system control unit (N82/2) |
7, 5 | |||
| 417 | Electrical fuse 417 (K40/5f417) | 30t | 0.5 RD | With Code 218 (Reversing camera): Reversing camera control unit (N66/2) |
5 |
| 0.75 RDBU | Model 253.99 with Code 877 (Ambient lighting): Ambiance illumination control unit (N162) |
7, 5 | |||
| 418...423 | Electrical fuse 418 (K40/5f418) - Electrical fuse 423 (K40/5f423) | 30t | - | Spare | - |
| 424 | Electrical fuse 424 (K40/5f424) | 30t | 0.35 RDWH | Model 205 up to 31.05.2019 with Code 872 (Seat heating in rear passenger compartment): Rear seat heater control unit (N25/6) |
5 |
| 0.5 RDVT | Model 205.4 up to 31.05.2019 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
||||
| 425 | Electrical fuse 425 (K40/5f425) | 30t | 0.5 RDWH | Model 205 up to 31.05.2019 with Code 409 (Left/right front multicontour seats): Right front multicontour seat control unit (N32/16) |
5 |
| Model 205 with Code 222 (Electrically adjustable right front seat), Code 242 (Electrically adjustable front passenger seat with memory function), Code 275 (Memory Package) or Code P65 (Seat Comfort Package) and except Code 409 (Left/right front multicontour seats): Front passenger seat lumbar support electropneumatic controller unit (N32/24) |
|||||
| 426 | Electrical fuse 426 (K40/5f426) | 30t | 0.5 RDWH | Model 205 up to 31.05.2019 with Code 409 (Left/right front multicontour seats): Left front multicontour seat control unit (N32/15) |
5 |
| Model 205 with Code 221 (Electrically adjustable left driver's seat), Code 241 (Memory switch for electrically adjustable left front passenger seat), Code 275 (Memory Package) or Code P65 (Seat Comfort Package) and except Code 409 (Left/right front multicontour seats): Driver's seat lumbar support electropneumatic controller unit (N32/23) |
|||||
| 427 | Electrical fuse 427 (K40/5f427) | 30t | 2.5 RD | Model 205 with Code 965 (Taxi/rental car preinstallation): Special-purpose vehicle multifunction control unit (N26/9) |
25 |
| 2.5 RDGN | With Code 970 (Police emergency vehicles) or Code 974 (Fire brigade lead emergency vehicle pre-installation) or Code 975 (Emergency physician vehicle pre-installation): Special vehicle multifunction control unit (SVMCU) (N26/14) |
||||
| 428 | Electrical fuse 428 (K40/5f428) | 30t | 0.5 RDYE | With Code 467 (Electronic differential lock): Electronic differential control unit (N3/2) |
5 |
| 429 | Electrical fuse 429 (K40/5f429) | 30t | - | Spare | - |
| 430...434 | Electrical fuse 430 (K40/5f430) - Electrical fuse 434 (K40/5f434) | 30t | - | Spare | - |
| 435 | Electrical fuse 435 (K40/5f435) | 30t | 4.0 RD | Model 253.99 with Code 890 (EASY-PACK liftgate): Liftgate control unit (N121/1) |
40 |
| 436...442 | Electrical fuse 436 (K40/5f436) - Electrical fuse 442 (K40/5f442) | 30t | - | Spare | - |
| 443 | Electrical fuse 443 (K40/5f443) | 30t | 2.5 RDVT | Model 205 with Code 965 (Taxi/rental car preinstallation): Special-purpose vehicle multifunction control unit (N26/9) |
25 |
| 2.5 RDWH | With Code 970 (Police emergency vehicles) or Code 974 (Fire brigade lead emergency vehicle pre-installation) or Code 975 (Emergency physician vehicle pre-installation): Special vehicle multifunction control unit (SVMCU) (N26/14) |
||||
| 1.0 RDWH | Model 205 with Code Z97 (Electronic interface) Special vehicle multifunction control unit (SVMCU) (N26/14) |
7, 5 | |||
| 444 | Electrical fuse 444 (K40/5f444) | 30t | 1.5 RDBU | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
15 |
| 445 | Electrical fuse 445 (K40/5f445) | 30t | 1.5 RDGY | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
15 |
| 446 | Electrical fuse 446 (K40/5f446) | 30t | 2.5 RD | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
25 |
| 447 | Electrical fuse 447 (K40/5f447) | 30t | 1.5 RDWH | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
15 |
| 448 | Electrical fuse 448 (K40/5f448) | 30t | 2.5 RDYE | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
25 |
| 449 | Electrical fuse 449 (K40/5f449) | 30t | 2.5 RD | With Code U67 (230 volt socket in interior) or Code U80 (115V socket): DC/AC converter control unit (N24/3) |
30 |
| 450 | Electrical fuse 450 (K40/5f450) | 30t | 2.5 RD | Model 205.3 with Code U02 (Electric seat belt extender), Model 205.4: Rear control unit (N22/6) |
25 |
| 1.5 RDBU | With Code 970 (Police emergency vehicles) or Code 974 (Fire brigade lead emergency vehicle pre-installation) or Code 975 (Emergency physician vehicle pre-installation): Vehicle socket electrical connection (X4/36) |
||||
| 0.5 RDBK | With Code 965 (Taxi/rental vehicle pre-installation): Mirror taximeter (A50/1) |
5 | |||
| 451 | Electrical fuse 451 (K40/5f451) | 30t | 2.5 RDWH | Model 205.4 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
30 |
| With CODE 872 (Seat heater in rear): Rear seat heater control unit (N25/6) |
|||||
| 452 | Electrical fuse 452 (K40/5f452) | 30t | 2.5 RDBK | Model 205.4 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
30 |
| 453 | Electrical fuse 453 (K40/5f453) | 30t | 2.5 RD | Model 205: Fuel system control unit (N118) |
25 |
| 454 | Electrical fuse 454 (K40/5f454) | 30t | 4.0 RDBK | Model 205 with Code 299 (PRE-SAFE® system): Right front reversible emergency tensioning retractor (A76/1) |
30 |
| 2.5 RDWH | Model 253.99: Rear axle electronic level control system control unit (N97) |
15 | |||
| 455 | Electrical fuse 455 (K40/5f455) | 87 | 1.5 RDBU | With Code 866 (Pre-installation for Rear Seat Entertainment System): Left tablet PC electrical connection (X99x1) Right tablet PC electrical connection (X99x2) |
15 |
| 0.35 PKGN | Model 253.99 with Code U67 (230 V socket in interior) or Code U80 (115V socket): DC/AC converter control unit (N24/3) |
5 | |||
| 456 | Electrical fuse 456 (K40/5f456) | 87 | 1.5 RD | Luggage compartment socket (X58/12) | 15 |
| 457 | Electrical fuse 457 (K40/5f457) | 87 | 1.5 RDBK | With Code 301 (Smoker's package): Front cigarette lighter with ashtray illumination (R3) |
15 |
| With Model 460 (Canada version) or Code 494 (USA version) and Code 897 (Wireless mobile phone charging) or Code 899 (Multifunction telephone): Socket 12V (X58/40) |
|||||
| 458 | Electrical fuse 458 (K40/5f458) | 87 | 1.5 RDBK | Right rear center console socket 12V (X58/18) | 15 |
| 459 | Electrical fuse 459 (K40/5f459) | 87 | - | Spare | - |
| 460 | Electrical fuse 460 (K40/5f460) | 87 | - | Spare | - |
| 461 | Electrical fuse 461 (K40/5f461) | 30t | 0.5 RD | Model 205 as of 01.06.2019 with Code ME05 (Hybrid Drive 80KW Variant (Including Plug-In)): Alternating current charger for high-voltage battery (N83/11) |
10 |
| 462 | Electrical fuse 462 (K40/5f462) | 30t | 1.0 RDBK | Model 205 as of 01.06.2019 with Code B63 (Sporty engine sound): Engine sound control unit (N40/1) |
15 |
| 463 | Electrical fuse 463 (K40/5f463) | 30t | - | Spare | - |
| 464 | Electrical fuse 464 (K40/5f464) | 30t | 0.5 RD | Model 205 as of 01.06.2019 with Code B24 (Remote control for stationary heater): Stationary heater radio remote control receiver (A6/1) |
5 |
| 0.5 RDYE | Model 253.99: Hydrogen filling station communication module (A90/11) |
||||
| 465 | Electrical fuse 465 (K40/5f465) | 87 | - | Spare | - |
| 466 | Electrical fuse 466 (K40/5f466) | 87 | - | Spare | - |
| 467 | Electrical fuse 467 (K40/5f467) | 30t | 0.35 RDWH | Model 205 as of 01.06.2019 with Code 872 (Seat heating in rear): Rear seat heater control unit (N25/6) |
5 |
| 0.5 RDVT | Model 205.4 as of 01.06.2019 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
||||
| 0.35 RDWH | Model 253.99 with Code 475 (Tire pressure monitor): Tire pressure monitor control unit (N88) |
||||
| 468 | Electrical fuse 468 (K40/5f468) | 30t | 0.5 RDWH | Model 205 as of 01.06.2019 with Code 409 (Left/right front multicontour seats): Right front multicontour seat control unit (N32/16) |
5 |
| 0.35 RDWH | Model 253.99 with Code 235 (Parking Pilot with PARKTRONIC): Parking system control unit (N62) |
||||
| 469 | Electrical fuse 469 (K40/5f469) | 30t | 0.35 RD | With CODE 871 (HANDS-FREE ACCESS): Rear switching module (N38) |
5 |
| 470 | Electrical fuse 470 (K40/5f470) | 30t | 0.5 RDWH | Model 205 as of 01.06.2019 with Code 409 (Left/right front multicontour seats): Left front multicontour seat control unit (N32/15) |
5 |
| 471 | Electrical fuse 471 (K40/5f471) | 30t | 1.0 RD | Model 205 with Code U68 (Active engine sound generator): Active engine sound generator control unit (N156/1) |
7, 5 |
| Model 253.99: Alternating current charger for high-voltage battery (N83/11) |
10 | ||||
| 472 | Electrical fuse 472 (K40/5f472) | 30t | 0.35 RDWH | With Code 23P (Driving Assistance Package): Mercedes-Benz Intelligent Drive control unit (N62/4) |
5 |
| 0.5 RDGN | Model 253.99 with Code 299 (PRE-SAFE® system): Right front reversible emergency tensioning retractor (A76/1) |
||||
| 473 | Electrical fuse 473 (K40/5f473) | 30t | 4.0 RD | Model 205 with Code 810 (Sound system): Sound system amplifier control unit (N40/3) |
40 |
| With Code 853 ("Midline" sound system): Midline sound system amplifier control unit (N40/2) |
|||||
| 474 | Electrical fuse 474 (K40/5f474) | 87 | 2.5 RDBU | Model 205.0/1/2/3, 253.99: Rear window interference suppression capacitor (C3) Rear window heater (R1) |
30 |
| Model 205.4: Rear window heater (R1) |
|||||
| 475 | Electrical fuse 475 (K40/5f475) | 30t | 4.0 RD | Model 205.3 with Code U02 (Electric seat belt extender), Model 205.4: Rear control unit (N22/6) |
40 |
| Model 205.0/1/3 with Code 881 (Remote trunk closing): Trunk lid control unit (N121) |
|||||
| Model 205.2 with Code 890 (EASY-PACK liftgate): Liftgate control unit (N121/1) |
|||||
| Model 253.99 with Code 810 (Sound system): Sound system amplifier control unit (N40/3) |
|||||
| 476 | Electrical fuse 476 (K40/5f476) | 30t | 4.0 RD | Rear SAM control unit (N10/8) | 40 |
| 477 | Electrical fuse 477 (K40/5f477) | 30t | 4.0 RD | Rear SAM control unit (N10/8) | 40 |
| 478 | Electrical fuse 478 (K40/5f478) | 30t | 4.0 RDWH | With Code U79 (BlueTEC (SCR) diesel exhaust treatment, 3rd generation): AdBlue® control unit (N118/5) |
40 |
| 479 | Electrical fuse 479 (K40/5f479) | 30t | 0.35 RDGN | Engine 177: Brake lights switch (S9/1) |
5 |
| 480 | Electrical fuse 480 (K40/5f480) | 30t | 0.5 RD | Up to 31.05.2019 with Code B24 (Remote control for stationary heater): Stationary heater radio remote control receiver (A6/1) |
5 |
| 481 | Electrical fuse 481 (K40/5f481) | 87 | - | Spare | - |
| 482 | Electrical fuse 482 (K40/5f482) | 87 | - | Spare | - |
| 483 | Electrical fuse 483 (K40/5f483) | 30t | 1.0 RDBK | With Code B63 (Sporty engine sound): Engine sound control unit (N40/1) |
15 |
| 484 | Electrical fuse 484 (K40/5f484) | 30t | 0.5 RD | Up to 31.05.2019 with Code ME05 (Hybrid Drive 80KW Variant (Including Plug-In)): Alternating current charger for high-voltage battery (N83/11) |
10 |
| Relay Identification | Designation |
|---|---|
| S | Vehicle interior circuit 15 relay (K40/5kS) |
| T | Rear window heater relay (K40/5kT) |
| U | 2nd seat row cup holder and sockets relay (K40/5kU) |
| V | With Code U77 (BlueTEC (SCR) diesel exhaust treatment, 3rd generation): AdBlue® relay (K40/5kV) |
| X | 1st seat row/trunk refrigerator box and sockets relay (K40/5kX) |
| Y | Spare relay (K40/5kY) |

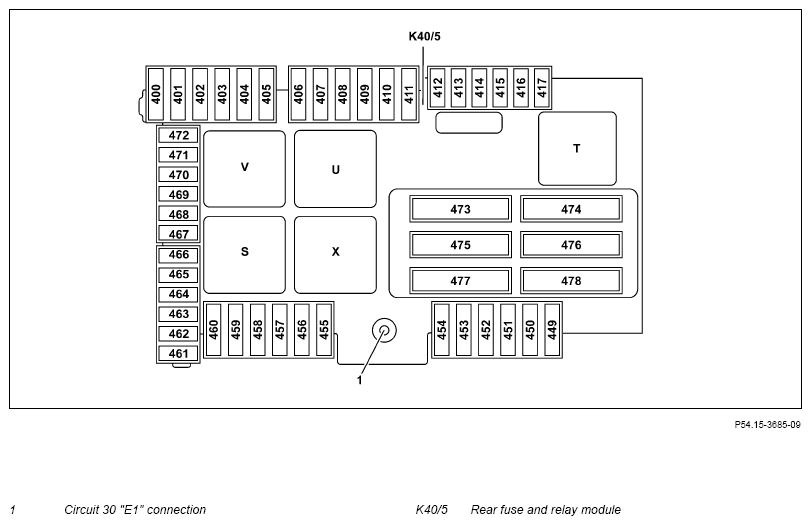

Variant 2
| Slot | Fuse Identification | Circuit | Wire Identification | Fused component | Fuse rating (A) |
|---|---|---|---|---|---|
| 400 | Electrical fuse 400 (K40/5f400) | 87 | - | Spare | - |
| 401 | Electrical fuse 401 (K40/5f401) | 87 | - | Spare | - |
| 402 | Electrical fuse 402 (K40/5f402) | 87 | - | Spare | - |
| 403 | Electrical fuse 403 (K40/5f403) | 87 | 0.35 PKGN | Model 205 with Code U67 (230 V socket in interior): DC/AC converter control unit (N24/3) |
5 |
| 404 | Electrical fuse 404 (K40/5f404) | 87 | 2.5 RDGN | Except Code 221 (Electrically adjustable left driver's seat), except Code 241 (Electrically adjustable left memory switch for front passenger seat) and except Code 275 (Memory Package): Driver seat partially electric seat adjustment switch (S22/1) |
30 |
| 405 | Electrical fuse 405 (K40/5f405) | 87 | 2.5 RDYE | Except Code 222 (Electrically adjustable right front seat), except Code 242 (Electrically adjustable front passenger seat with memory function) and except Code 275 (Memory Package): Front passenger seat partially electric seat adjustment switch (S23/1) |
30 |
| 406 | Electrical fuse 406 (K40/5f406) | 30t | 2.5 RD | Left-hand drive vehicle Model 205: Left front door control unit (N69/1) |
30 |
| Right-Hand drive vehicle Model 205: Right front door control unit (N69/2) |
|||||
| 407 | Electrical fuse 407 (K40/5f407) | 30t | 0.35 RD | Model 253.99: Circuit 30t end sleeve (Z265z3) |
5 |
| 408 | Electrical fuse 408 (K40/5f408) | 30t | 2.5 RD | Model 205.0/1/2: Right rear door control unit (N69/4) |
30 |
| Model 205.3 with Code U02 (Electric seat belt extender), Model 205.4: Rear control unit (N22/6) |
|||||
| 2.5 RDWH | Left-hand drive vehicle Model 253.99: Left rear door control unit (N69/3) |
||||
| Right-Hand drive vehicle Model 253.99: Right rear door control unit (N69/4) |
|||||
| 409 | Electrical fuse 409 (K40/5f409) | 30t | 1.0 RDGN | With Code U79 (BlueTEC (SCR) diesel exhaust treatment, 3rd generation): AdBlue® control unit (N118/5) |
15 |
| 410 | Electrical fuse 410 (K40/5f410) | 30t | 2.5 RDWH | With Code 467 (Electronic differential lock): Electronic differential control unit (N3/2) |
25 |
| 411 | Electrical fuse 411 (K40/5f411) | 30t | 4.0 RD | Model 205 with Code 299 (PRE-SAFE® system): Left front reversible emergency tensioning retractor (A76) |
30 |
| 2.5 RD | Model 253.99: Power electronics control unit (N129/1) |
||||
| 412 | Electrical fuse 412 (K40/5f412) | 30t | 0.5 RD | With Code ME05 (Hybrid Drive 80KW Variant (Including Plug-In)): Battery management system control unit (N82/2) |
5 |
| 0.5 RDGN | Model 253.99 with Code 299 (PRE-SAFE® system): Left front reversible emergency tensioning retractor (A76) |
||||
| 413 | Electrical fuse 413 (K40/5f413) | 30t | 0.5 RDBK | With Code B01 (48V technology): 48 V on-board electrical system battery (G1/3) |
5 |
| 0.75 RD | Model 253.99: DC/DC converter control unit (N83/1) |
||||
| 414 | Electrical fuse 414 (K40/5f414) | 30t | 0.35 RDWH | Model 205 with Code 865 (TV tuner): TV tuner control unit (N143) |
5 |
| Model 253.99 with Code 475 (Tire pressure monitor): Tire pressure monitor control unit (N88) |
|||||
| 0.5 RDWH | Model 253.99 with Code 865 (TV tuner): TV tuner control unit (N143) |
||||
| 415 | Electrical fuse 415 (K40/5f415) | 30t | 0.35 RDYE | With Code P21 (Air quality package): Perfume atomizer generator (N59) |
5 |
| 416 | Electrical fuse 416 (K40/5f416) | 30t | 0.35 RDWH | Model 205 with Code 475 (Tire pressure monitor): Tire pressure monitor control unit (N88) |
5 |
| 0.75 RD | Model 253.99: Battery management system control unit (N82/2) |
7, 5 | |||
| 417 | Electrical fuse 417 (K40/5f417) | 30t | 0.5 RD | With Code 218 (Reversing camera): Reversing camera control unit (N66/2) |
5 |
| 0.75 RDBU | Model 253.99 with Code 877 (Ambient lighting): Ambiance illumination control unit (N162) |
7, 5 | |||
| 418...423 | Electrical fuse 418 (K40/5f418) - Electrical fuse 423 (K40/5f423) | 30t | - | Spare | - |
| 424 | Electrical fuse 424 (K40/5f424) | 30t | 0.35 RDWH | Model 205 up to 31.05.2019 with Code 872 (Seat heating in rear passenger compartment): Rear seat heater control unit (N25/6) |
5 |
| 0.5 RDVT | Model 205.4 up to 31.05.2019 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
||||
| 425 | Electrical fuse 425 (K40/5f425) | 30t | 0.5 RDWH | Model 205 up to 31.05.2019 with Code 409 (Left/right front multicontour seats): Right front multicontour seat control unit (N32/16) |
5 |
| Model 205 with Code 222 (Electrically adjustable right front seat), Code 242 (Electrically adjustable front passenger seat with memory function), Code 275 (Memory Package) or Code P65 (Seat Comfort Package) and except Code 409 (Left/right front multicontour seats): Front passenger seat lumbar support electropneumatic controller unit (N32/24) |
|||||
| 426 | Electrical fuse 426 (K40/5f426) | 30t | 0.5 RDWH | Model 205 up to 31.05.2019 with Code 409 (Left/right front multicontour seats): Left front multicontour seat control unit (N32/15) |
5 |
| Model 205 with Code 221 (Electrically adjustable left driver's seat), Code 241 (Memory switch for electrically adjustable left front passenger seat), Code 275 (Memory Package) or Code P65 (Seat Comfort Package) and except Code 409 (Left/right front multicontour seats): Driver's seat lumbar support electropneumatic controller unit (N32/23) |
|||||
| 427 | Electrical fuse 427 (K40/5f427) | 30t | 2.5 RD | Model 205 with Code 965 (Taxi/rental car preinstallation): Special-purpose vehicle multifunction control unit (N26/9) |
25 |
| 2.5 RDGN | With Code 970 (Police emergency vehicles) or Code 974 (Fire brigade lead emergency vehicle pre-installation) or Code 975 (Emergency physician vehicle pre-installation): Special vehicle multifunction control unit (SVMCU) (N26/14) |
||||
| 428 | Electrical fuse 428 (K40/5f428) | 30t | 0.5 RDYE | With Code 467 (Electronic differential lock): Electronic differential control unit (N3/2) |
5 |
| 429 | Electrical fuse 429 (K40/5f429) | 30t | - | Spare | - |
| 430...434 | Electrical fuse 430 (K40/5f430) - Electrical fuse 434 (K40/5f434) | 30t | - | Spare | - |
| 435 | Electrical fuse 435 (K40/5f435) | 30t | 4.0 RD | Model 253.99 with Code 890 (EASY-PACK liftgate): Liftgate control unit (N121/1) |
40 |
| 436...442 | Electrical fuse 436 (K40/5f436) - Electrical fuse 442 (K40/5f442) | 30t | - | Spare | - |
| 443 | Electrical fuse 443 (K40/5f443) | 30t | 2.5 RDVT | Model 205 with Code 965 (Taxi/rental car preinstallation): Special-purpose vehicle multifunction control unit (N26/9) |
25 |
| 2.5 RDWH | With Code 970 (Police emergency vehicles) or Code 974 (Fire brigade lead emergency vehicle pre-installation) or Code 975 (Emergency physician vehicle pre-installation): Special vehicle multifunction control unit (SVMCU) (N26/14) |
||||
| 1.0 RDWH | Model 205 with Code Z97 (Electronic interface) Special vehicle multifunction control unit (SVMCU) (N26/14) |
7, 5 | |||
| 444 | Electrical fuse 444 (K40/5f444) | 30t | 1.5 RDBU | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
15 |
| 445 | Electrical fuse 445 (K40/5f445) | 30t | 1.5 RDGY | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
15 |
| 446 | Electrical fuse 446 (K40/5f446) | 30t | 2.5 RD | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
25 |
| 447 | Electrical fuse 447 (K40/5f447) | 30t | 1.5 RDWH | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
15 |
| 448 | Electrical fuse 448 (K40/5f448) | 30t | 2.5 RDYE | With CODE 550 (Trailer hitch): Trailer recognition control unit (N28/1) |
25 |
| 449 | Electrical fuse 449 (K40/5f449) | 30t | 2.5 RD | With Code U67 (230 volt socket in interior) or Code U80 (115V socket): DC/AC converter control unit (N24/3) |
30 |
| 450 | Electrical fuse 450 (K40/5f450) | 30t | 2.5 RD | Model 205.3 with Code U02 (Electric seat belt extender), Model 205.4: Rear control unit (N22/6) |
25 |
| 1.5 RDBU | With Code 970 (Police emergency vehicles) or Code 974 (Fire brigade lead emergency vehicle pre-installation) or Code 975 (Emergency physician vehicle pre-installation): Vehicle socket electrical connection (X4/36) |
||||
| 0.5 RDBK | With Code 965 (Taxi/rental vehicle pre-installation): Mirror taximeter (A50/1) |
5 | |||
| 451 | Electrical fuse 451 (K40/5f451) | 30t | 2.5 RDWH | Model 205.4 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
30 |
| With CODE 872 (Seat heater in rear): Rear seat heater control unit (N25/6) |
|||||
| 452 | Electrical fuse 452 (K40/5f452) | 30t | 2.5 RDBK | Model 205.4 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
30 |
| 453 | Electrical fuse 453 (K40/5f453) | 30t | 2.5 RD | Model 205: Fuel system control unit (N118) |
25 |
| 454 | Electrical fuse 454 (K40/5f454) | 30t | 4.0 RDBK | Model 205 with Code 299 (PRE-SAFE® system): Right front reversible emergency tensioning retractor (A76/1) |
30 |
| 2.5 RDWH | Model 253.99: Rear axle electronic level control system control unit (N97) |
15 | |||
| 455 | Electrical fuse 455 (K40/5f455) | 87 | 1.5 RDBU | With Code 866 (Pre-installation for Rear Seat Entertainment System): Left tablet PC electrical connection (X99x1) Right tablet PC electrical connection (X99x2) |
15 |
| 0.35 PKGN | Model 253.99 with Code U67 (230 V socket in interior) or Code U80 (115V socket): DC/AC converter control unit (N24/3) |
5 | |||
| 456 | Electrical fuse 456 (K40/5f456) | 87 | 1.5 RD | Luggage compartment socket (X58/12) | 15 |
| 457 | Electrical fuse 457 (K40/5f457) | 87 | 1.5 RDBK | With Code 301 (Smoker's package): Front cigarette lighter with ashtray illumination (R3) |
15 |
| With Model 460 (Canada version) or Code 494 (USA version) and Code 897 (Wireless mobile phone charging) or Code 899 (Multifunction telephone): Socket 12V (X58/40) |
|||||
| 458 | Electrical fuse 458 (K40/5f458) | 87 | 1.5 RDBK | Right rear center console socket 12V (X58/18) | 15 |
| 459 | Electrical fuse 459 (K40/5f459) | 87 | - | Spare | - |
| 460 | Electrical fuse 460 (K40/5f460) | 87 | - | Spare | - |
| 461 | Electrical fuse 461 (K40/5f461) | 30t | 0.5 RD | Model 205 as of 01.06.2019 with Code ME05 (Hybrid Drive 80KW Variant (Including Plug-In)): Alternating current charger for high-voltage battery (N83/11) |
10 |
| 462 | Electrical fuse 462 (K40/5f462) | 30t | 1.0 RDBK | Model 205 as of 01.06.2019 with Code B63 (Sporty engine sound): Engine sound control unit (N40/1) |
15 |
| 463 | Electrical fuse 463 (K40/5f463) | 30t | - | Spare | - |
| 464 | Electrical fuse 464 (K40/5f464) | 30t | 0.5 RD | Model 205 as of 01.06.2019 with Code B24 (Remote control for stationary heater): Stationary heater radio remote control receiver (A6/1) |
5 |
| 0.5 RDYE | Model 253.99: Hydrogen filling station communication module (A90/11) |
||||
| 465 | Electrical fuse 465 (K40/5f465) | 87 | - | Spare | - |
| 466 | Electrical fuse 466 (K40/5f466) | 87 | - | Spare | - |
| 467 | Electrical fuse 467 (K40/5f467) | 30t | 0.35 RDWH | Model 205 as of 01.06.2019 with Code 872 (Seat heating in rear): Rear seat heater control unit (N25/6) |
5 |
| 0.5 RDVT | Model 205.4 as of 01.06.2019 with Code 403 (AIRSCARF system): AIRSCARF control unit (N25/7) |
||||
| 0.35 RDWH | Model 253.99 with Code 475 (Tire pressure monitor): Tire pressure monitor control unit (N88) |
||||
| 468 | Electrical fuse 468 (K40/5f468) | 30t | 0.5 RDWH | Model 205 as of 01.06.2019 with Code 409 (Left/right front multicontour seats): Right front multicontour seat control unit (N32/16) |
5 |
| 0.35 RDWH | Model 253.99 with Code 235 (Parking Pilot with PARKTRONIC): Parking system control unit (N62) |
||||
| 469 | Electrical fuse 469 (K40/5f469) | 30t | 0.35 RD | With CODE 871 (HANDS-FREE ACCESS): Rear switching module (N38) |
5 |
| 470 | Electrical fuse 470 (K40/5f470) | 30t | 0.5 RDWH | Model 205 as of 01.06.2019 with Code 409 (Left/right front multicontour seats): Left front multicontour seat control unit (N32/15) |
5 |
| 471 | Electrical fuse 471 (K40/5f471) | 30t | 1.0 RD | Model 205 with Code U68 (Active engine sound generator): Active engine sound generator control unit (N156/1) |
7, 5 |
| Model 253.99: Alternating current charger for high-voltage battery (N83/11) |
10 | ||||
| 472 | Electrical fuse 472 (K40/5f472) | 30t | 0.35 RDWH | With Code 23P (Driving Assistance Package): Mercedes-Benz Intelligent Drive control unit (N62/4) |
5 |
| 0.5 RDGN | Model 253.99 with Code 299 (PRE-SAFE® system): Right front reversible emergency tensioning retractor (A76/1) |
||||
| 473 | Electrical fuse 473 (K40/5f473) | 30t | 4.0 RD | Model 205 with Code 810 (Sound system): Sound system amplifier control unit (N40/3) |
40 |
| With Code 853 ("Midline" sound system): Midline sound system amplifier control unit (N40/2) |
|||||
| 474 | Electrical fuse 474 (K40/5f474) | 87 | 2.5 RDBU | Model 205.0/1/2/3, 253.99: Rear window interference suppression capacitor (C3) Rear window heater (R1) |
30 |
| Model 205.4: Rear window heater (R1) |
|||||
| 475 | Electrical fuse 475 (K40/5f475) | 30t | 4.0 RD | Model 205.3 with Code U02 (Electric seat belt extender), Model 205.4: Rear control unit (N22/6) |
40 |
| Model 205.0/1/3 with Code 881 (Remote trunk closing): Trunk lid control unit (N121) |
|||||
| Model 205.2 with Code 890 (EASY-PACK liftgate): Liftgate control unit (N121/1) |
|||||
| Model 253.99 with Code 810 (Sound system): Sound system amplifier control unit (N40/3) |
|||||
| 476 | Electrical fuse 476 (K40/5f476) | 30t | 4.0 RD | Rear SAM control unit (N10/8) | 40 |
| 477 | Electrical fuse 477 (K40/5f477) | 30t | 4.0 RD | Rear SAM control unit (N10/8) | 40 |
| 478 | Electrical fuse 478 (K40/5f478) | 30t | 4.0 RDWH | With Code U79 (BlueTEC (SCR) diesel exhaust treatment, 3rd generation): AdBlue® control unit (N118/5) |
40 |
| 479 | Electrical fuse 479 (K40/5f479) | 30t | 0.35 RDGN | Engine 177: Brake lights switch (S9/1) |
5 |
| 480 | Electrical fuse 480 (K40/5f480) | 30t | 0.5 RD | Up to 31.05.2019 with Code B24 (Remote control for stationary heater): Stationary heater radio remote control receiver (A6/1) |
5 |
| 481 | Electrical fuse 481 (K40/5f481) | 87 | - | Spare | - |
| 482 | Electrical fuse 482 (K40/5f482) | 87 | - | Spare | - |
| 483 | Electrical fuse 483 (K40/5f483) | 30t | 1.0 RDBK | With Code B63 (Sporty engine sound): Engine sound control unit (N40/1) |
15 |
| 484 | Electrical fuse 484 (K40/5f484) | 30t | 0.5 RD | Up to 31.05.2019 with Code ME05 (Hybrid Drive 80KW Variant (Including Plug-In)): Alternating current charger for high-voltage battery (N83/11) |
10 |
| Relay Identification | Designation |
|---|---|
| S | Vehicle interior circuit 15 relay (K40/5kS) |
| T | Rear window heater relay (K40/5kT) |
| U | 2nd seat row cup holder and sockets relay (K40/5kU) |
| V | With Code U77 (BlueTEC (SCR) diesel exhaust treatment, 3rd generation): AdBlue® relay (K40/5kV) |
| X | 1st seat row/trunk refrigerator box and sockets relay (K40/5kX) |
| Y | Spare relay (K40/5kY) |
The rear fuse and relay module is installed in two Variants, depending on the equipment involved.
