Open Close Latch - AR47.10-P-4100-02LW
Model 205, 213, 238, 253, 257
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A |
FUEL TANK
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA47.10-P-1004-01P | Screw/bolt, maintenance cover to body | Nm | 3 | 3 |
FUEL TANK
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA47.10-P-1004-01P | Screw/bolt, maintenance cover to body | Nm | 3 | 3 |
FUEL TANK
| Number | Designation | Model 257 | |
|---|---|---|---|
| BA47.10-P-1004-01P | Screw/bolt, maintenance cover to body | Nm | 3 |

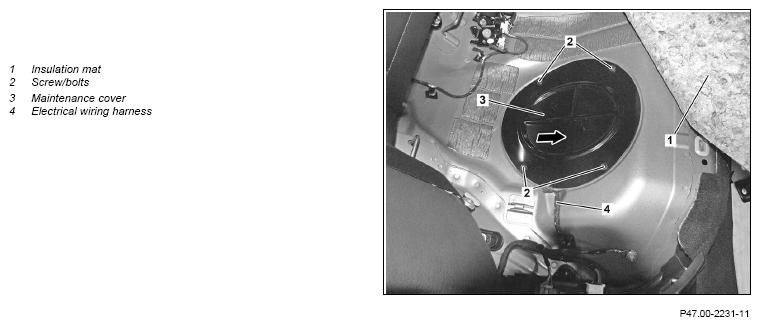

Shown on model 205
Open latch
- Hammer back insulation mat (1) or remove it.
- Remove screw/bolts (2) and remove maintenance cover (3) of service opening.
Close latch
- Install maintenance cover (3) and screw in screw/bolts (2)
- Turn over or install insulation mat (1).
Observe maximum bolt length of 10 mm. When using longer screw/bolts there is the danger of leaks at the fuel tank and injury to persons or damage to equipment and the environment.
