Control Unit - Keyless-Go - Engine Does Not Start - Vehicle Does Not Recognize Key (LI54.21-P-064645)

Publication date: 2016-08-10
Reference number: LI54.21-P-064645

CONTROL UNIT - KEYLESS-GO - ENGINE DOES NOT START - VEHICLE DOES NOT RECOGNIZE KEY

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI54.21-P-064645 Version 2, Date of Issue: April 19, 2017

MERCEDES-BENZ:	213
DESIGN GROUP:	54.21 Control units/basic modules
REASON FOR CHANGE:	Remedy revised

COMPLAINT

Keyless-Go control unit fault codes

Engine may not start

Vehicle may not recognize key

CAUSE

Water traces (drips) on Keyless-Go control unit.

REMEDY

Dismantle right rear interior trim in the trunk area (see photo attached). Check if there are any traces of water on the Keyless-Go control unit.

IMPORTANT: Do not dismantle any more components.

If there are traces of water found, please also note if the rear window glass is tinted. If excessive water is used during the tinting process, it can leak down the rear hat shelf area and onto the KG control unit connector, causing corrosion. In this case the repair cannot be covered under warranty. The KG control unit and damaged connector components must be replaced, see parts list.

If no traces of water are found, please proceed with diagnostics of the KG system.

NOTE: Pin 27 is a low profile line (0.13mm² ):
Wire stripper: W 000 589 30 37 00

ATTACHMENTS

File	Description

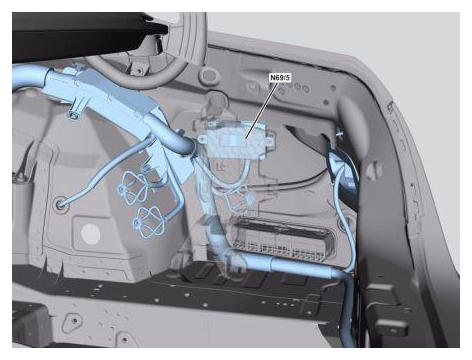

download.jpg	KG control unit location

CONTROL UNIT/FAULT CODE

Control unit	Fault code	Fault text
N69/5 - KEYLESS GO (KG) (KG213)	-	-

PARTS

Part number	Designation	Note	EPC
A 001 545 49 40	Plug Housing	Connector housing	X
A 008 545 55 26	Contact Spring	contact socket MQS - 0.75mm²	X
A 016 545 41 26	Female contact	contact socket MQS - 0.35mm²	X
A 002 546 13 41	Cable connector	cable connector 0.35/0.5mm²	X
A 002 546 14 41	Cable connector	cable connector 0.75mm²	X
A 001 540 94 05	El. cable	Pigtail MQS (0.5mm² )	X
