Service: Service Display Implausible (LI00.20-P-066887)

Publication date: 2017-08-14
Reference number: LI00.20-P-066887

SERVICE: SERVICE DISPLAY IMPLAUSIBLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): LI00.20-P-066887 Version 1, Date of Issue: August 14, 2017

MERCEDES-BENZ:	Vehicles 190, 205, 213, 222MOPF, 238, 253, with ASSYST (WIA) in PTCU control unit (CEPC); Vehicles 166, 292 maintenance interval display in instrument cluster
DESIGN GROUP:	00.20 Maintenance, service system (FSS, ASSYST)

COMPLAINT

Service display implausible, shows incorrect interval from the 5th service maintenance - Service interval - XXXXX km for vehicles with ASSYST in PTCU (CEPC, CPC_NG)

CAUSE

Inaccurate data record of maintenance interval display (WIA)

REMEDY

Situation corrected with an Add On 7982 for Xentry update 07/17. Always install all Add Ons before carrying out any updates.

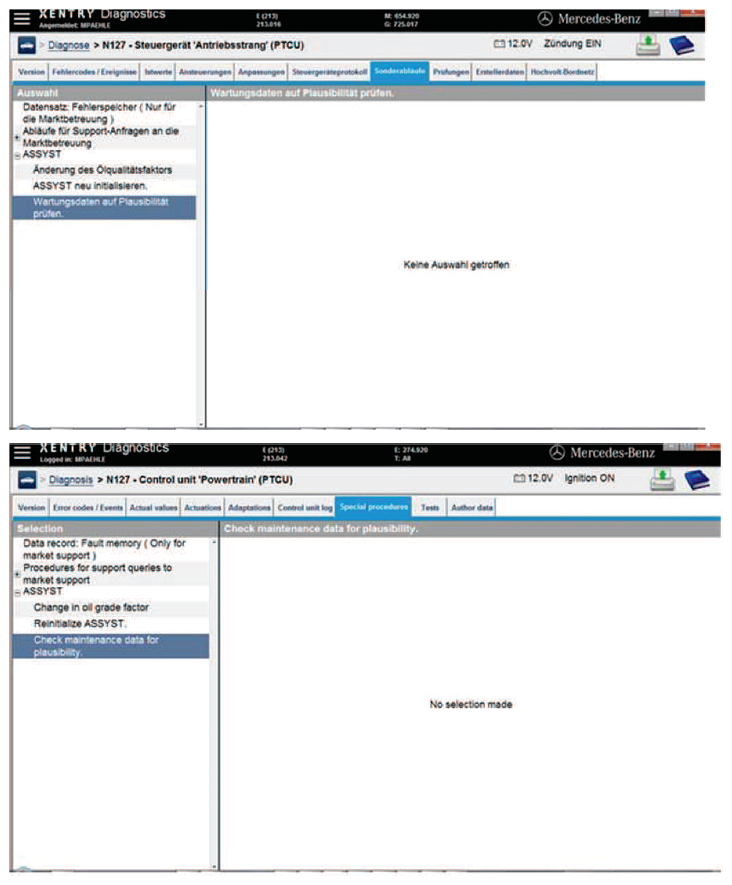

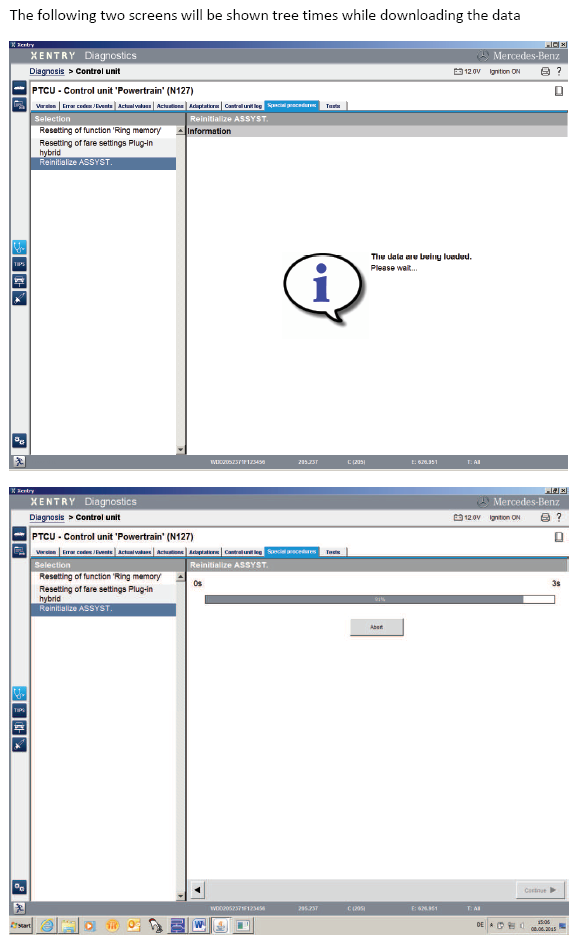

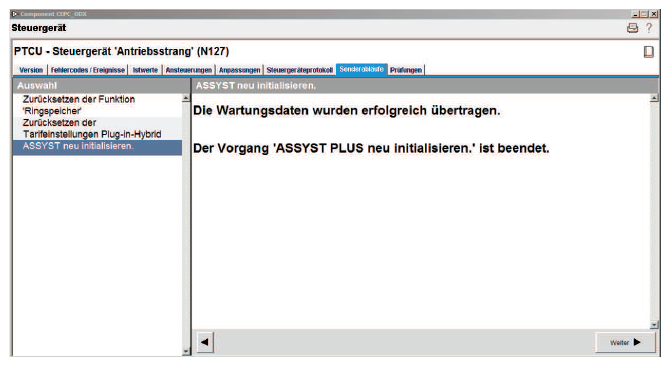

Perform N127 update under following path: Powertrain control unit (PTCU)/Special procedures/ASSYST/Check maintenance data for plausibility - follow instructions.

ATTACHMENTS

File	Description

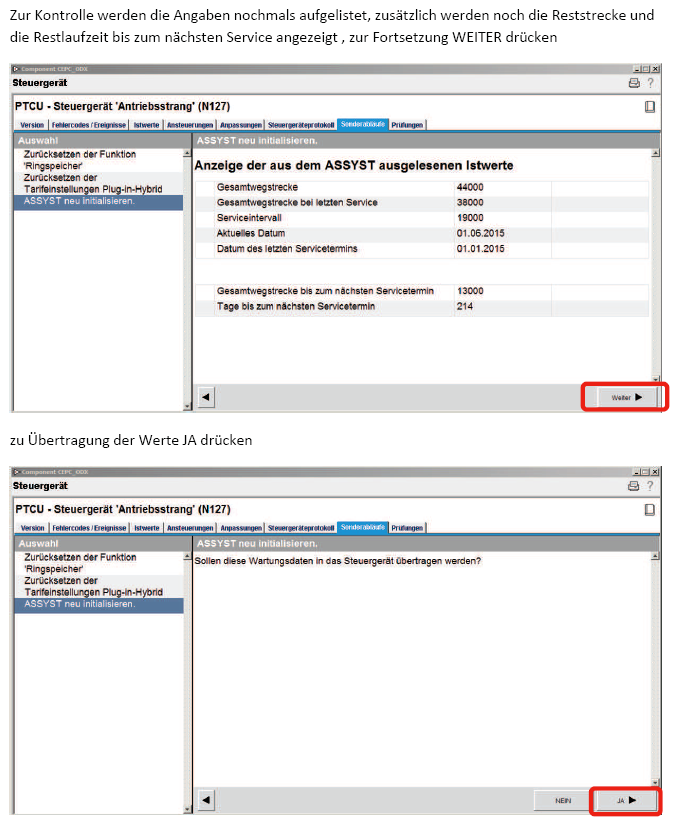

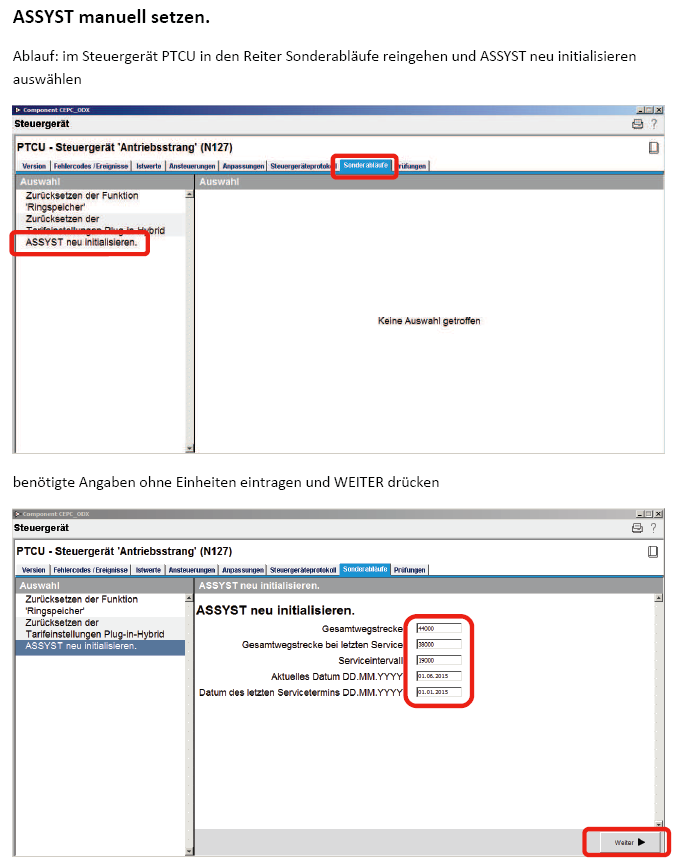

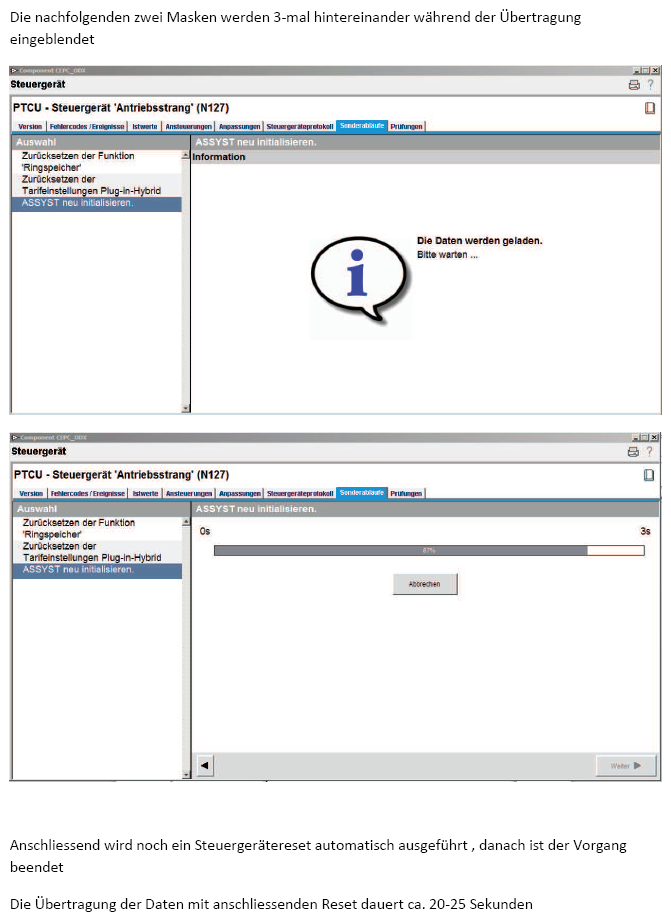

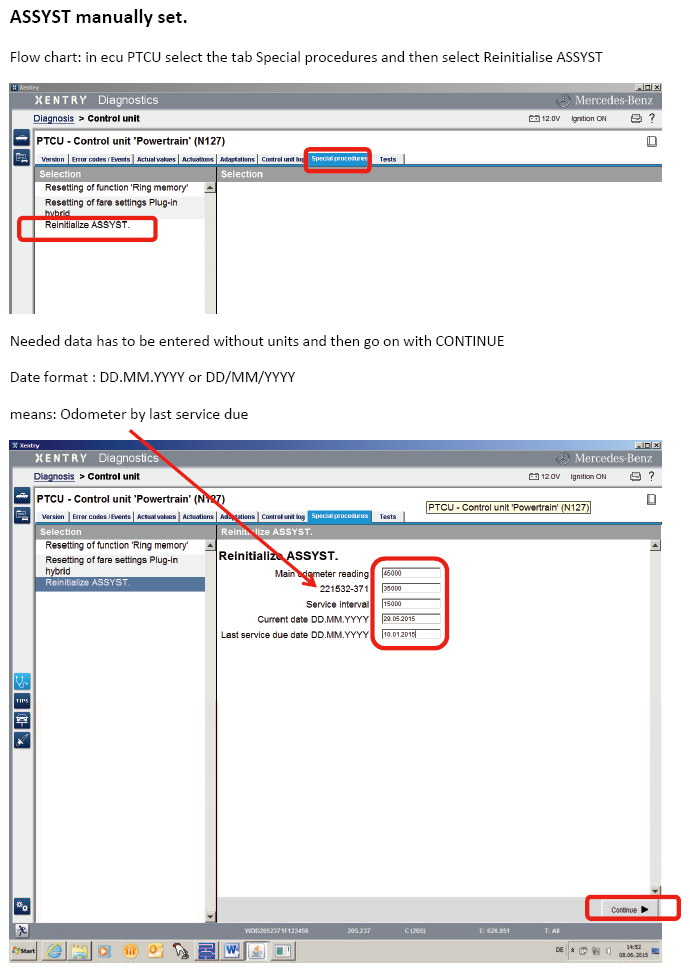

Sonderablauf_ASSYST_manuell_setzen.pdf	PTCU instructions

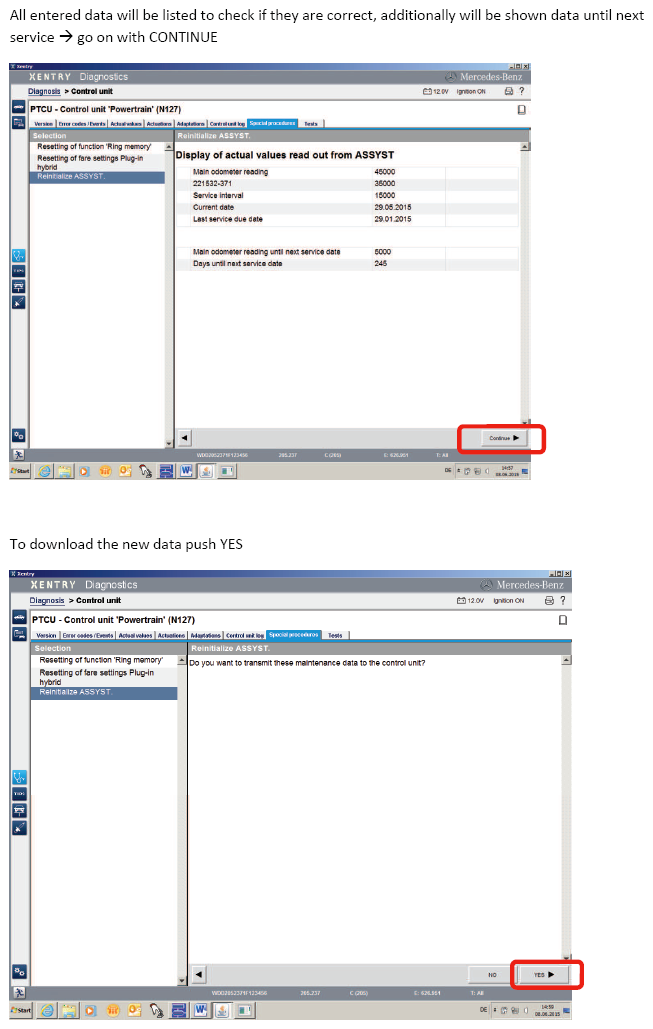

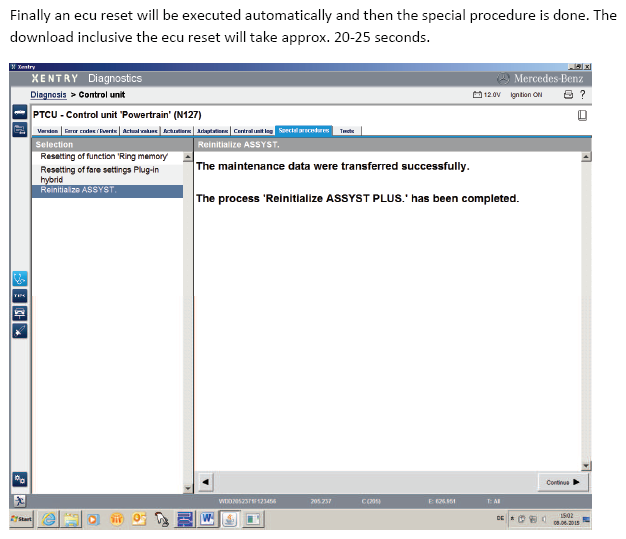

Special_procedure_ASSYST_manually_set.pdf	PTCU Manual English

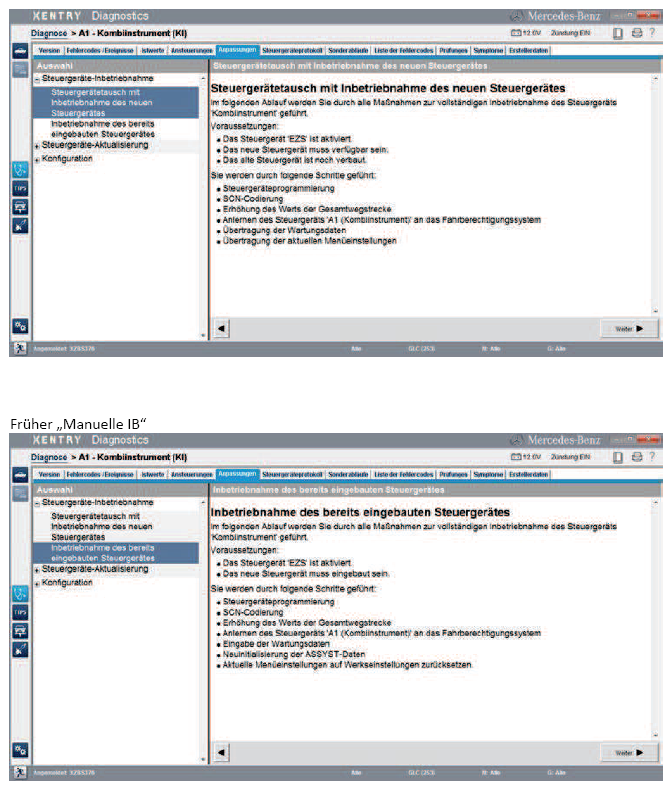

Manuelle Inbetriebnahme KI-D-.pdf	IC instructions

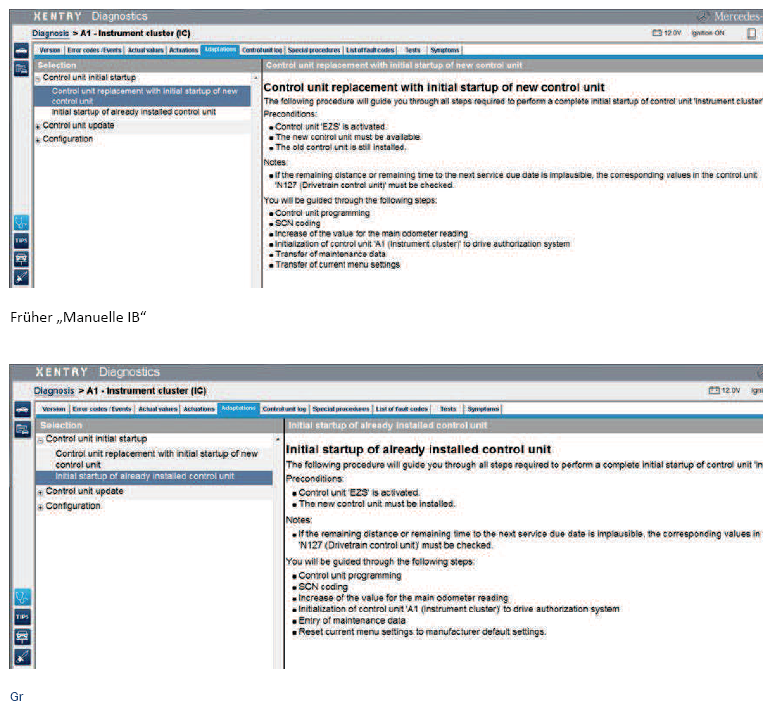

Manual startup IC-E-.pdf	IC Manual
AddOn Nr.7982.pdf	Instructions

CONTROL UNIT/FAULT CODE

Control unit	Fault code	Fault text
N127 - Control unit 'Powertrain' (PTCU) (CEPC) (GLC (253), S (222), C (205), AMG GT (190))	-	-
N127 - Control unit 'Powertrain' (PTCU) (CPC_NG) (E (213), S (222), C (205))	-	-
A1 - Instrument cluster (IC) (IC213) (E (213), S (222), C (205))	-	-
A1 - Instrument cluster (IC) (IC222) (GLC (253), S (222), C (205), AMG GT (190))	-	-

OPERATION NUMBERS/DAMAGE CODES

Op. no.	Damage code	Note
54-0650	54201 G3	manually write Service display implausible as the error.
54-1011
54-0991
