Separating Rear Spring Bracket - Ar61.25-D-6155-01HA
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 rpm) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
On model 906.233 the following work steps are shown on the left side of the vehicle and must be accomplished analogously on the right side.

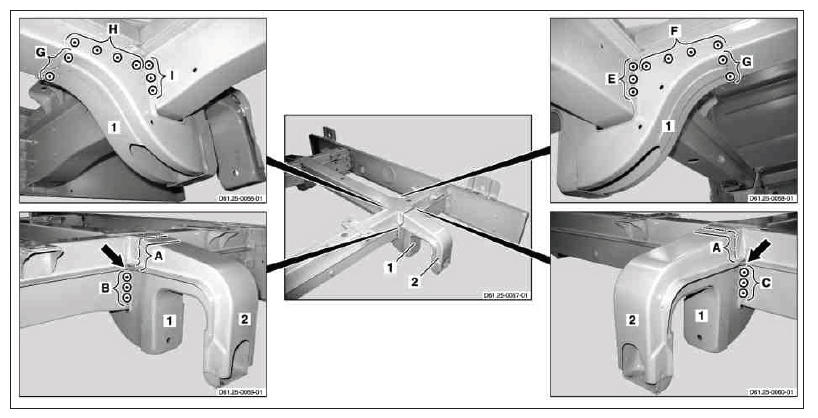

- Expose spot welds on rear spring bracket bottom section (1) (areas B, C, E, F, G, H, I and arrow).
- Scribe separation line on rear spring bracket top section (2) (area A).
- Cut rear spring bracket top section (2) on separation point using body saw (area A).
- Cut out spot welds using
spot weld milling cutter or
ball cutter (areas B, C, E, F, G, H and I).
- Cut out spot welds on rear spring bracket bottom section (1) from bottom (arrow).
- Remove damaged rear spring bracket bottom section (1) with top section (2).
- Cut weld seams on rear spring bracket top section (2) (area J).
- Remove remaining piece from rear spring bracket top section (2).

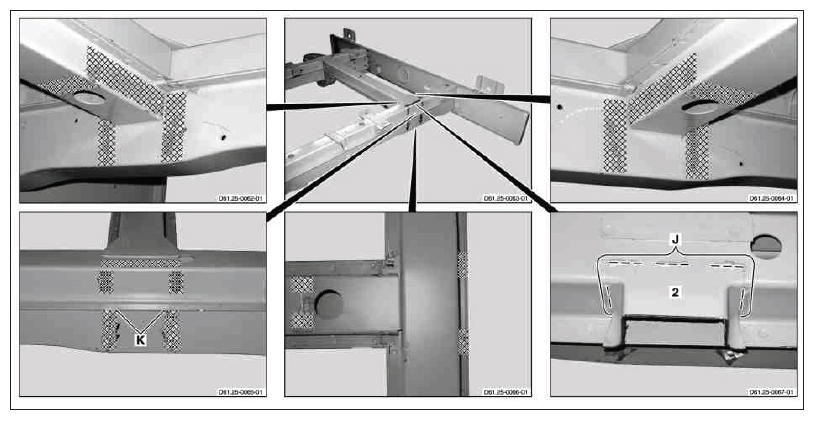

- Grind mating surfaces on rear spring bracket bottom section (1) and top section (2) down to bare metal in cross-hatched areas using
- Grind mating surfaces on rear spring bracket bottom section (1) in area (K) from bottom using
- Remove grinding and drill shavings using wet/dry vacuum cleaner.
