Sound System Amplifier Control Unit Connector End View (N40/3)

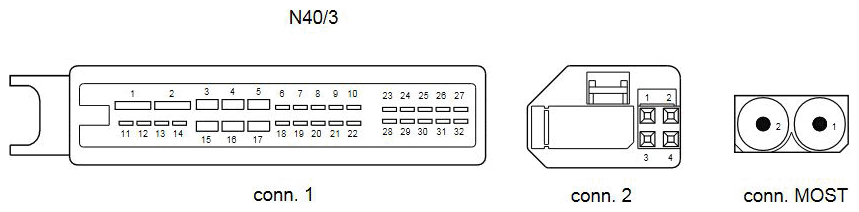

Fig 1: Sound System Amplifier Control Unit Connector End View (N40/3)
G11068749Courtesy of MERCEDES-BENZ USA
