602 589 00 10 00 Socket wrench - WS15.00-P-0015B

ENGINE ALL

Use in FG 15/Set B

Purpose:

Notching teeth socket wrench 17X20 mm (according to DIN 5481/SW 17 mm) for assembly of the alternator belt pulley with freewheel.

NOTE: In combination with screwdriver bit 601 589 00 10 00 to counterhold the alternator drive shaft.

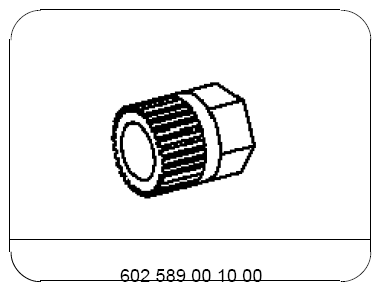

Fig 1: Identifying Socket Wrench (602 589 00 10 00)
G07744401Courtesy of MERCEDES-BENZ USA
