Selector Valve, Component Description - GF27.60-D-5143H

Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735

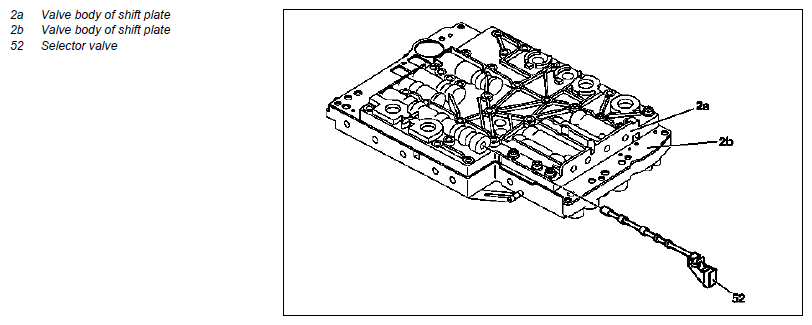

G10885880Courtesy of MERCEDES-BENZ USA

Location

The selector valve is located in the shift plate valve body.

Task

Corresponding to the gear selector switch position selected by the driver it distributes pressure to the corresponding hydraulic components.
