Regulating Valve, Component Description - GF27.60-D-5140HE
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735
Shift pressure regulating valve

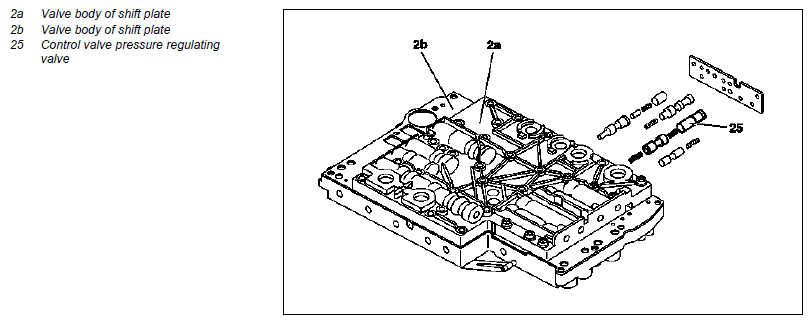

Location
The control valve pressure regulating valve is located in the shift plate valve housing.
Task
Controls the control valve pressure.

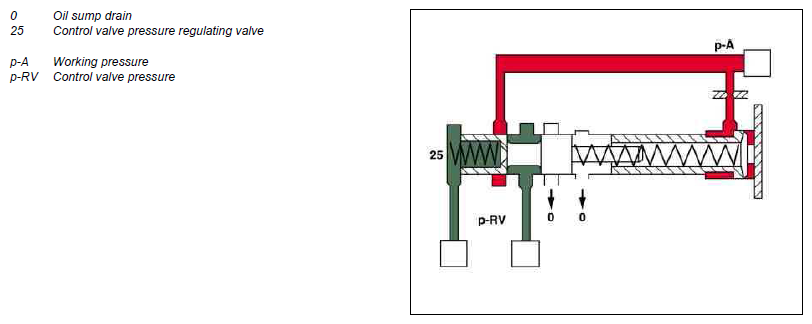

Function
The control valve pressure is regulated at the control valve pressure regulating valve up to the maximum pressure depending on the working pressure.
