SAM Control Unit Connector End View (N10)

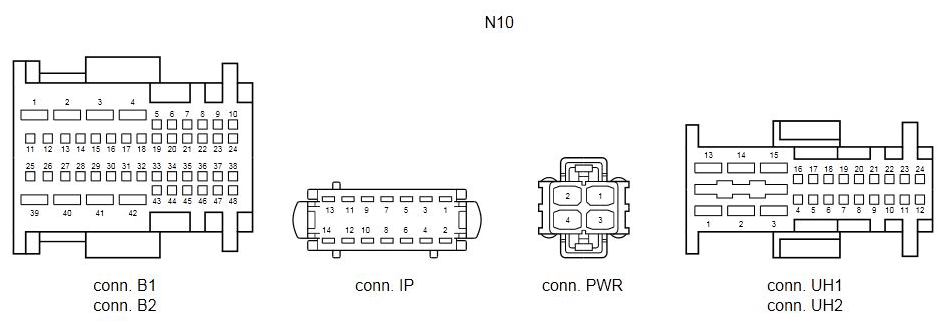

Fig 1: SAM Control Unit Connector End View (N10)
G11064547Courtesy of MERCEDES-BENZ USA
