Overview of PRE-SAFE system components - GF91.40-P-9997CE
MODEL 204.0/2 with CODE (299) PRE-SAFE as of model year 2009/YoM 08
MODEL 204.3 with CODE (299) PRE-SAFE
MODEL 204.9 with CODE (299) PRE-SAFE

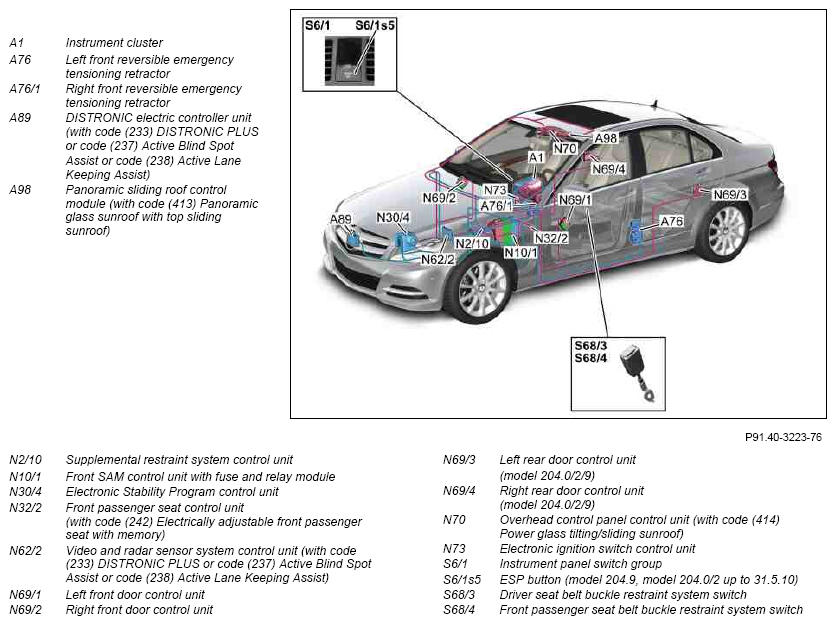

Shown on model 204.0
| Component description for instrument cluster | A1 | GF54.30-P-6000CE | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020CE | |
| Component description for DISTRONIC electric controller unit | A89 Model 204.0/2 as of 1.3.11, model 204.3 With code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist or with code (238) Active Lane Keeping Assist |
GF30.30-P-3213CE | |
| Component description for panoramic sliding roof control module | A98 With code (413) Panoramic glass sunroof with top sliding sunroof |
GF77.20-P-4106CE | |
| Component description for supplemental restraint system control unit | N2/10 | GF91.60-P-4068CE | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070CE | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119CE | |
| Component description for front passenger seat control unit | N32/2 With code (242) Electrically adjustable front passenger seat with memory |
GF91.29-P-5241CE | |
| Component description for video and radar sensor system control unit | N62/2 Model 204.0/2 as of 1.3.11, model 204.3 with code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist or code (238) Active Lane Keeping Assist |
GF30.30-P-3304CE | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE | |
| Component description for rear door control unit | N69/3, N69/4 model 204.0/2/9 |
GF72.29-P-6021CE | |
| Component description for overhead control panel control unit | N70 With code (414) Electric glass tilting/sliding sunroof |
GF82.20-P-5216CE | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE | |
| Table of contents for PRE-SAFE function description | GF91.40-P-0997CE |
