OEM Connector End Views -- 216 Chassis
>>
Connector End Views
>>
Keyless Go Control Module Connector End View (N69/5)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Keyless Go Control Module Connector End View (N69/5)

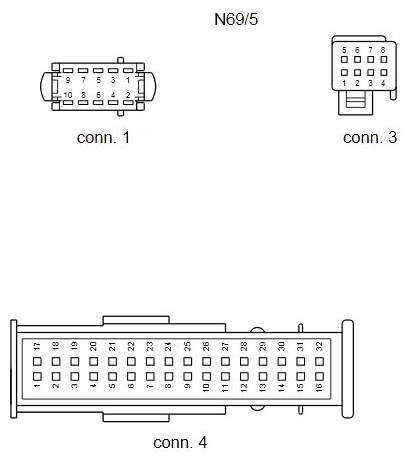

Fig 1: Keyless Go Control Module Connector End View (N69/5)
Courtesy of MERCEDES-BENZ USA
