Intelligent Servo Module For Direct Select Connector End View (A80)

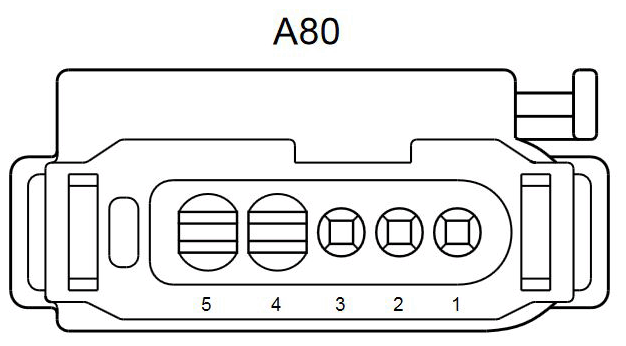

Fig 1: Intelligent Servo Module For Direct Select Connector End View (A80)
Courtesy of MERCEDES-BENZ USA
