Control Solenoid Valve Component Description - GF27.19-D-5147HM
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735
Modulating pressure control solenoid valve
Location

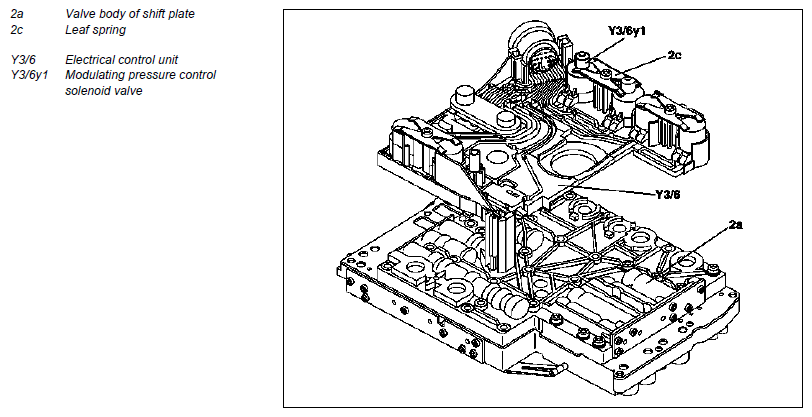

The modulating pressure control solenoid valve is located on the supporting body of the electric control unit and is pressed against the shift plate valve body by means of a leaf spring.
Task
The task of the modulating pressure control solenoid valve is to control the modulating pressure depending on the constantly changing operating conditions, e.g.such as load change and gear change.
Design

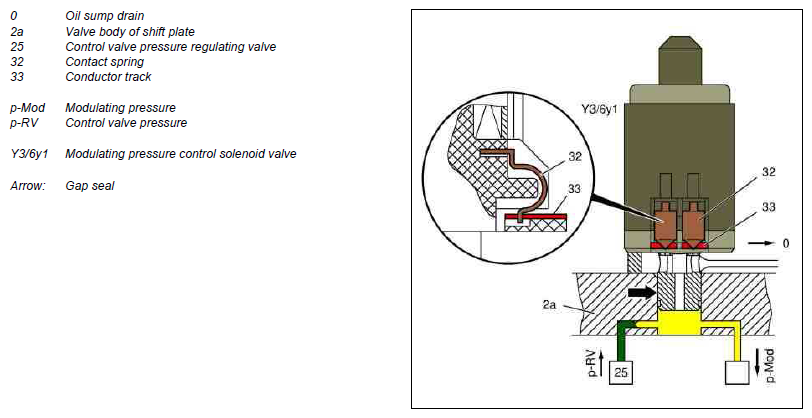

The modulating pressure control solenoid valve has a snug fit and is sealed with a gap seal facing the shift plate valve body.
The contact springs on the modulating pressure control solenoid valve grip into a slot in the conductor tracks. The spring force of the contact springs means that reliable contacting is guaranteed.
Function
The modulating pressure control solenoid valve assigns a proportional pressure to a current regulated by the ETC [EGS] control unit (N15/3) in a load-dependent manner.
