Check Vehicle Level At The Front Axle Using Electronic Inclinometer - Ar40.20-D-6870H

Model 906

Courtesy of MERCEDES-BENZ USA

	Check
1	General information on wheel alignment		AR40.20-D-0201H
1	General information on wheel alignment	After repair work: Rock the vehicle several times firmly to settle the suspension before the measurement.
2	Check vehicle level at front axle via wishbone inclination
	000 588 05 19 00 Inclinometer		WS40.00-P-0007B

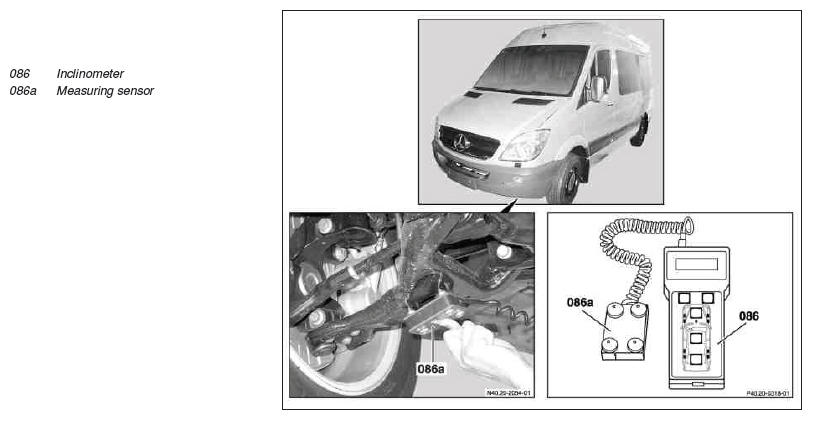

	000 588 05 19 00 Inclinometer	The connecting cable of the measuring sensor (086a) must face the center of the vehicle. Otherwise the measurement will be inaccurate. Clean measuring points on transverse control arm before measurement. Mount measuring sensor (086a) and measure steering angle, then note and save each value. Measuring point 1, left front Measuring point 2, right front If values from right to left are different, use mean value.
