Remove/Install Refrigerant Compressor Bracket - Ar83.55-D-5301WE

MODEL 906.6 with ENGINE 642, 651 with CODE H08 (High-performance air conditioning)

MODEL 906.633 up to 4/13/14 with ENGINE 651.956 with CODE HK4 (Rear air conditioning, reinforced) with CODE IR4 (Wheelbase 3665 mm) with CODE ZL3 (National version for Latin America)

MODEL 906.633 with ENGINE 651.956 with CODE HK4 (Rear air conditioning, reinforced) with CODE ZL3 (National version for Latin America) without CODE IR4 (Wheelbase 3665 mm)

MODEL 906.633/655/657 up to 4/13/14 with ENGINE 651.955 with CODE HK4 (Rear air conditioning, reinforced) with CODE IR4 (Wheelbase 3665 mm) with CODE ZL3 (National version for Latin America)

MODEL 906.633/655/657 with ENGINE 651.955 with CODE HK4 (Rear air conditioning, reinforced) with CODE ZL3 (National version for Latin America) without CODE IR4 (Wheelbase 3665 mm)

MODEL 906.7 with ENGINE 642 with CODE H08 (High-performance air conditioning)

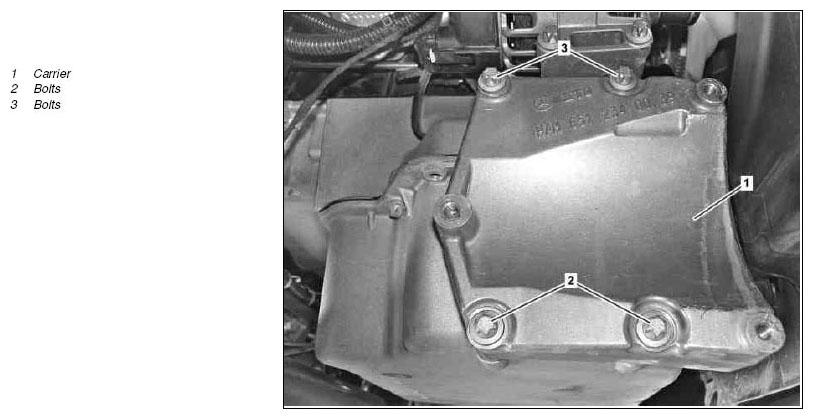

Shown on engine 651

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove refrigerant compressor from carrier (1) and hang to one side with refrigerant lines connected		AR83.55-D-5300WE
2	Remove carrier (1)	MODEL 906 with CODE H08 or HK4	*BA83.30-N-1019-01F
		MODEL 906 with CODE H08 or HK4	*BA83.30-N-1003-01F
3	Install in the reverse order
