Remove/Install Refrigerant Compressor - Ar83.55-D-5300D

Model 906 with engine 646 with code HH7 (Additional air conditioning in rear) with code HH9 (Air conditioner, automatic heater control) Except 2nd refrigerant compressor

Model 906 with engine 646 with code HH9 (Air conditioner, automatic heater control) except code HH7 (Additional air conditioning in rear) Except 2nd refrigerant compressor

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Remove fluid reservoir	MODEL 906 with CODE XM0 (Facelift)	AR83.30-D-6520M
1	Remove fluid reservoir	MODEL 906 except CODE XM0 (Facelift)	AR83.30-D-6520C
2	Lift/jack up vehicle		AR00.60-D-1000H
	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
3	Slacken poly-V-belt		AR13.22-S-3902-01SD
	Pin for locking poly-V belt tensioning device		WF58.50-S-1325-02S
4	Remove poly-V-belt from refrigerant compressor (A9)	Check run of poly-V-belt after installation. The poly-V-belt must make contact all the rollers uniformly.

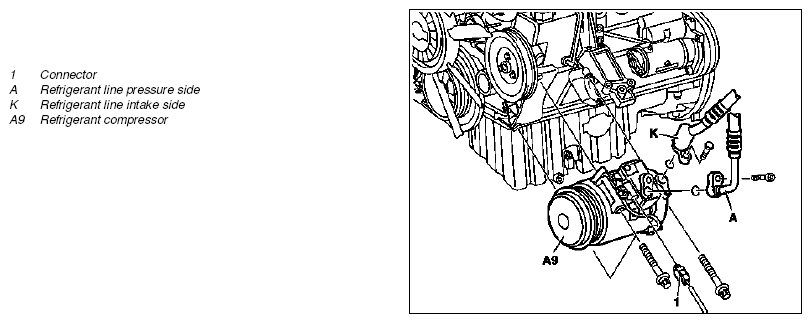

5	Remove plug (1) from refrigerant compressor (A9)
6	Detach pressure-side refrigerant line (A) and intake-side refrigerant line (K) from refrigerant compressor (A9)
	Compressor oils (specification 362.0)		BB00.40-P-0362-00A
		Install pressure-side refrigerant line (A) and intake-side refrigerant line (K) with new sealing rings. Coat sealing rings with compressor oil before installing.
		Bolt, refrigerant line to refrigerant compressor	*BA83.30-N-1010-01F
7	Close off openings on pressure-side refrigerant line (A), intake-side refrigerant line (K) and refrigerant compressor (A9) with stop plugs	Record plug	Fig 1
8	Remove screws/bolts and remove refrigerant compressor (A9) downwards	Bolt, refrigerant compressor to cylinder crankcase If a new refrigerant compressor (A9) is installed: ↓ Drain compressor oil from new refrigerant compressor (A9). Determine remaining quantity of compressor oil that remained in removed refrigerant compressor (A9) and fill new compressor oil according to determined remaining quantity in new refrigerant compressor (A9).	*BA83.30-N-1011-01F
		Compressor oils (specification 362.0) If the refrigerant compressor (A9) was replaced because of internal damage: ↓ Remove and thoroughly clean expansion valve.	BB00.40-P-0362-00A
		With code HH9 (Regulated air conditioning (Tempmatic)) On vehicle with CODE HH7 (Additional air conditioning in rear): ↓ Also remove expansion valve of air conditioning (roof equipment) and clean thoroughly.	AR83.30-D-5520C
		With CODE HH7 (Additional air conditioning in rear)	AR83.50-D-5020B
9	Install in the reverse order

AIR CONDITIONING

Number	Designation		Model 906.6/7 with code H08 (High-output A/C system in passenger compartment)	MODEL 906 with CODE HH9
BA83.30-N-1010-01F	Bolt, refrigerant line to refrigerant compressor	Nm	22	22

AIR CONDITIONING

Number	Designation		MODEL 906.6/7 with CODE HH7	MODEL 906 up to 31.12.15 with CODE HK4 with condenser module on roof (KONVEKTA)
BA83.30-N-1010-01F	Bolt, refrigerant line to refrigerant compressor	Nm	22	22

AIR CONDITIONING

Number	Designation		MODEL 906 up to 31.12.15 with CODE HK4 without condenser module on roof (KONVEKTA)	MODEL 906 as of 1.1.16 with CODE HK4 with condenser module on roof (MAHLE)
BA83.30-N-1010-01F	Bolt, refrigerant line to refrigerant compressor	Nm	22	22

AIR CONDITIONING

Number	Designation		MODEL 906 as of 1.1.16 with CODE HK4 without condenser module on roof (MAHLE)
BA83.30-N-1010-01F	Bolt, refrigerant line to refrigerant compressor	Nm	22

AIR CONDITIONING

Number	Designation		Model 906.6/7 with code H08 (High-output A/C system in passenger compartment)	MODEL 906 with CODE HH9
BA83.30-N-1011-01F	Bolt, refrigerant compressor to cylinder crankcase	Nm	20	20

AIR CONDITIONING

Number	Designation		MODEL 906.6/7 with CODE HH7	MODEL 906 up to 31.12.15 with CODE HK4 with condenser module on roof (KONVEKTA)
BA83.30-N-1011-01F	Bolt, refrigerant compressor to cylinder crankcase	Nm	20	-

AIR CONDITIONING

Number	Designation		MODEL 906 up to 31.12.15 with CODE HK4 without condenser module on roof (KONVEKTA)	MODEL 906 as of 1.1.16 with CODE HK4 with condenser module on roof (MAHLE)
BA83.30-N-1011-01F	Bolt, refrigerant compressor to cylinder crankcase	Nm	20	-

AIR CONDITIONING

Number	Designation		MODEL 906 as of 1.1.16 with CODE HK4 without condenser module on roof (MAHLE)
BA83.30-N-1011-01F	Bolt, refrigerant compressor to cylinder crankcase	Nm	20

Fig 1: Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
